Consistency Level

As a distributed vector database, Zilliz Cloud offers multiple levels of consistency to ensure that each node or replica can access the same data during read and write operations. Currently, the supported levels of consistency include Strong, Bounded, Eventually, and Session, with Bounded being the default level of consistency used.

Overview​

Zilliz Cloud is a system that separates storage and computation. In this system, DataNodes are responsible for the persistence of data and ultimately store it in distributed object storage such as MinIO/S3. QueryNodes handle computational tasks like Search. These tasks involve processing both batch data and streaming data. Simply put, batch data can be understood as data that has already been stored in object storage while streaming data refers to data that has not yet been stored in object storage. Due to network latency, QueryNodes often do not hold the most recent streaming data. Without additional safeguards, performing Search directly on streaming data may result in the loss of many uncommitted data points, affecting the accuracy of search results.

Zilliz Cloud Commercial Edition is a system that separates storage and computation. In this system, DataNodes are responsible for the persistence of data and ultimately store it in distributed object storage such as MinIO/S3. QueryNodes handle computational tasks like Search. These tasks involve processing both batch data and streaming data. Simply put, batch data can be understood as data that has already been stored in object storage, while streaming data refers to data that has not yet been stored in object storage. Due to network latency, QueryNodes often do not hold the most recent streaming data. Without additional safeguards, performing Search directly on streaming data may result in the loss of many uncommitted data points, affecting the accuracy of search results.

UlOJwpWuKhj5LAbGSp9cwMFznEb

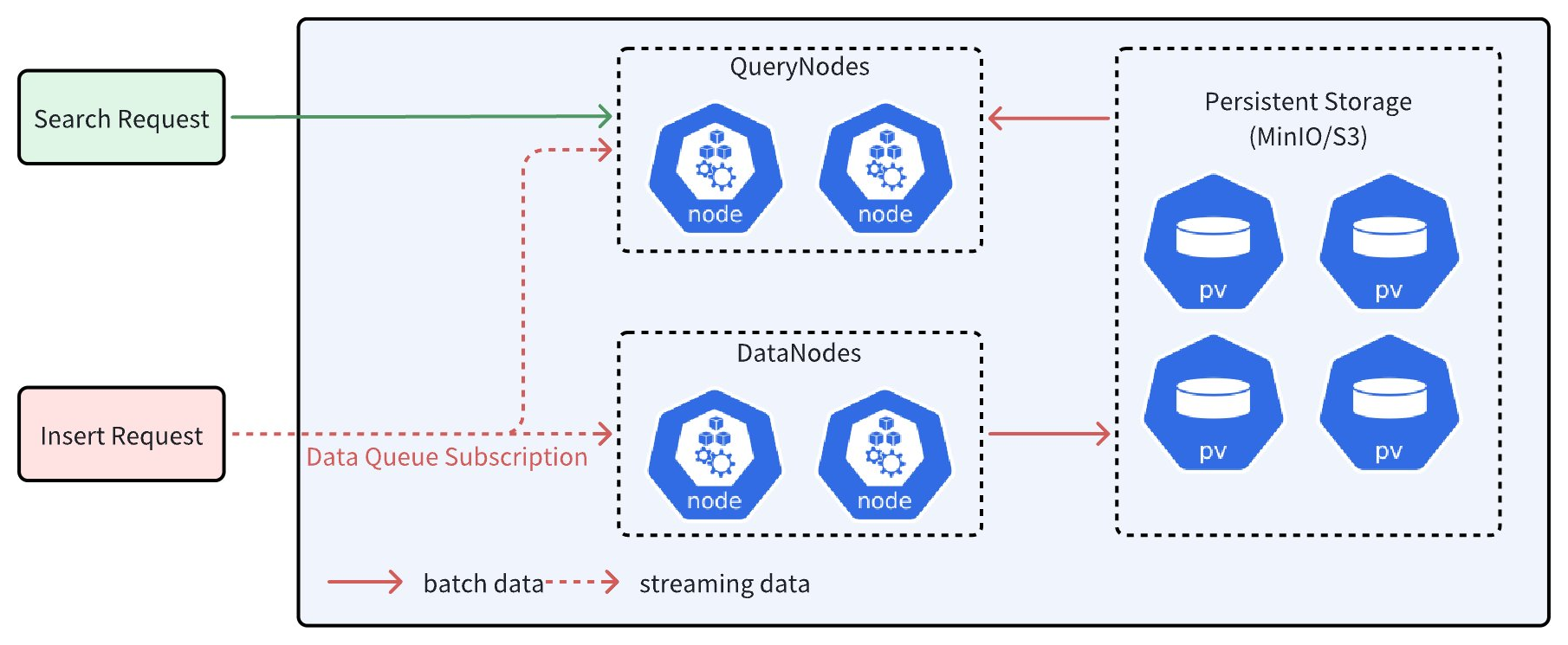

As shown in the figure above, QueryNodes can receive both streaming data and batch data simultaneously after receiving a Search request. However, due to network latency, the streaming data obtained by QueryNodes may be incomplete.

To address this issue, Zilliz Cloud timestamps each record in the data queue and continuously inserts synchronization timestamps into the data queue. Whenever a synchronization timestamp (syncTs) is received, QueryNodes sets it as the ServiceTime, meaning that QueryNodes can see all data prior to that Service Time. Based on the ServiceTime, Zilliz Cloud can provide guarantee timestamps (GuaranteeTs) to meet different user requirements for consistency and availability. Users can inform QueryNodes of the need to include data prior to a specified point in time in the search scope by specifying GuaranteeTs in their Search requests.

Owddb7D3Fo8zyFxJgWWcZCxanIf

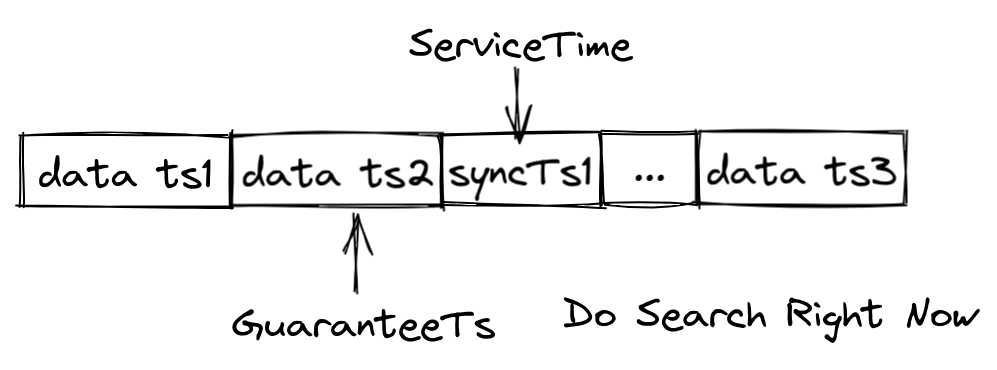

As shown in the figure above, if GuaranteeTs is less than ServiceTime, it means that all data before the specified time point has been fully written to disk, allowing QueryNodes to immediately perform the Search operation. When GuaranteeTs is greater than ServiceTime, QueryNodes must wait until ServiceTime exceeds GuaranteeTs before they can execute the Search operation.

Users need to make a trade-off between query accuracy and query latency. If users have high consistency requirements and are not sensitive to query latency, they can set GuaranteeTs to a value as large as possible; if users wish to receive search results quickly and are more tolerant of query accuracy, then GuaranteeTs can be set to a smaller value.

Y9YabwvmjoWMXhxt9kRc8Atmnid

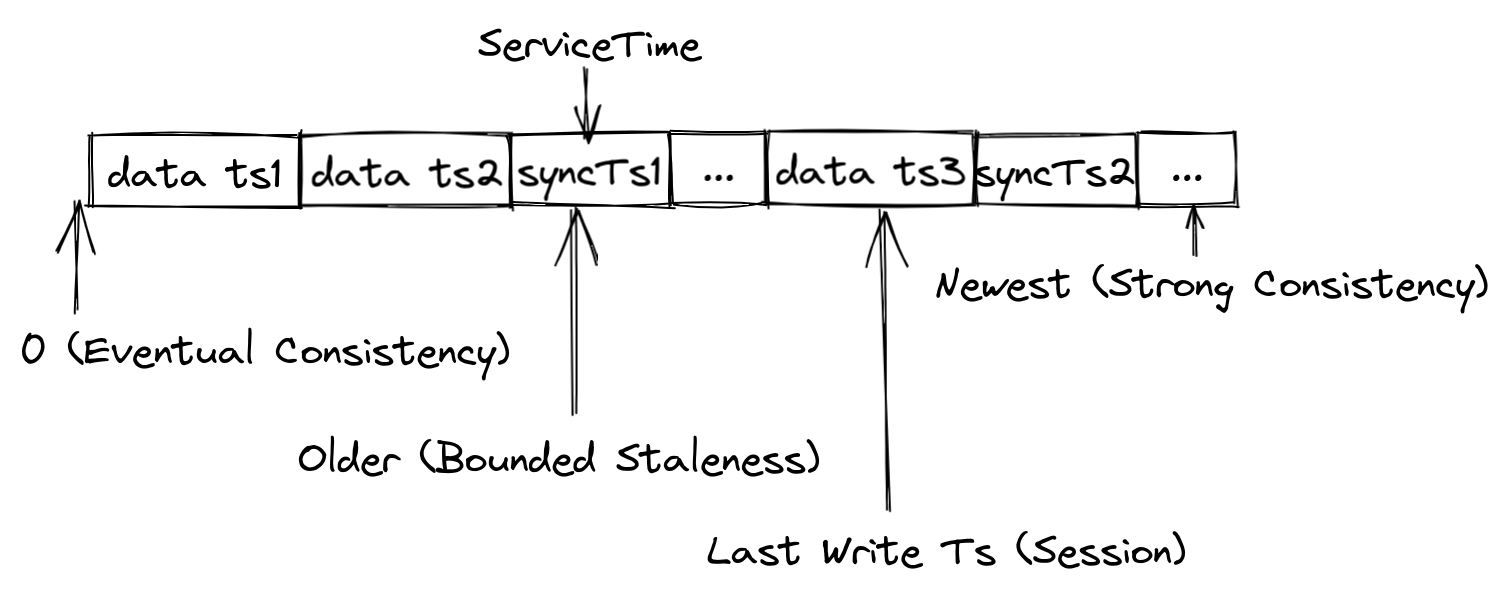

Zilliz Cloud provides four types of consistency levels with different GuaranteeTs.

  • Strong

    The latest timestamp is used as the GuaranteeTs, and QueryNodes have to wait until the ServiceTime meets the GuaranteeTs before executing Search requests.

  • Eventual

    The GuaranteeTs is set to an extremely small value, such as 1, to avoid consistency checks so that QueryNodes can immediately execute Search requests upon all batch data.

  • Bounded Staleness

    The GuranteeTs is set to a time point earlier than the latest timestamp to make QueryNodes to perform searches with a tolerance of certain data loss.

  • Session

    The latest time point at which the client inserts data is used as the GuaranteeTs so that QueryNodes can perform searches upon all the data inserted by the client.

Zilliz Cloud uses Bounded Staleness as the default consistency level. If the GuaranteeTs is left unspecified, the latest ServiceTime is used as the GuaranteeTs.

Set Consistency Level​

You can set different consistency levels when you create a collection as well as perform searches and queries.

Set Consistency Level upon Creating Collection​

When creating a collection, you can set the consistency level for the searches and queries within the collection. The following code example sets the consistency level to Strong.

client.create_collection(
    collection_name="my_collection",
    schema=schema,
    # highlight-next
    consistency_level="Strong",
)

Possible values for the consistency_level parameter are Strong, Bounded, Eventually, and Session.

You can always change the consistency level for a specific search. The following code example sets the consistency level back to the Bounded. The change applies only to the current search request.

res = client.search(
    collection_name="my_collection",
    data=[query_vector],
    limit=3,
    search_params={"metric_type": "IP"}，
    consistency_level="Bounded",
    # highlight-next
)

This parameter is also available in hybrid searches and the search iterator. Possible values for the consistency_level parameter are Strong, Bounded, Eventually, and Session.

Set Consistency Level in Query​

You can always change the consistency level for a specific search. The following code example sets the consistency level to the Eventually. The setting applies only to the current query request.

res = client.query(
    collection_name="my_collection",
    filter="color like \"red%\"",
    output_fields=["vector", "color"],
    limit=3，
    consistency_level="Eventually",
    # highlight-next
)

This parameter is also available in the query iterator. Possible values for the consistency_level parameter are Strong, Bounded, Eventually, and Session.
