Integrate with Google Cloud Storage

This page explains how to authorize a Zilliz Cloud GCP BYOC or BYOC-I data plane to access an external Google Cloud Storage bucket. You create a bucket-scoped custom IAM role and grant it directly to the data plane's storage Google service account (GSA).

Notes

The Zilliz Cloud integration wizard displays the exact Google Cloud Service Account email to authorize. This is the storage GSA for the selected data plane. Grant that displayed principal bucket-level access; do not create, download, or upload a long-lived service account key.

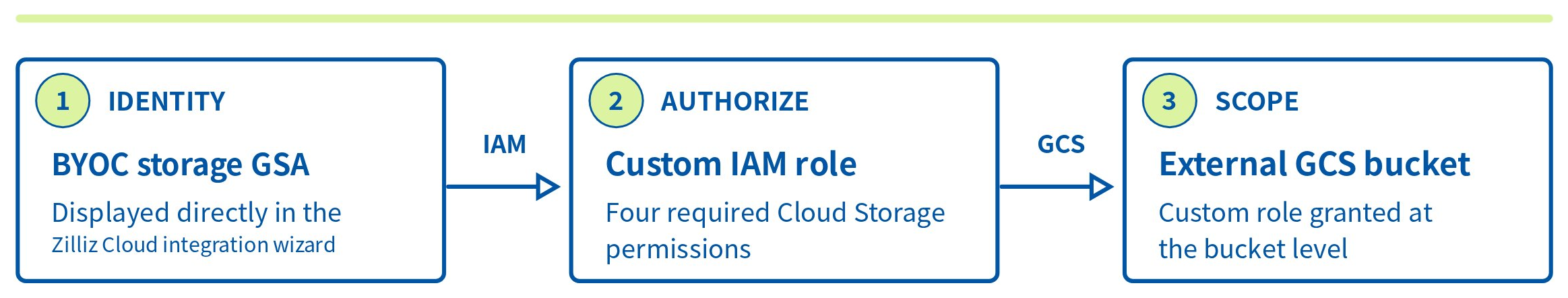

Access flow

Before you start

Ensure that:

• Your GCP BYOC or BYOC-I data plane is running.

• You have Organization Owner or Project Admin access to the Zilliz Cloud project.

• You can create a project-level custom IAM role in the Google Cloud project that owns the bucket.

• You can update the IAM policy on the target Cloud Storage bucket.

• The bucket uses a single Region that matches the selected BYOC data plane Region.

Notes

A bucket integration is Region-specific. Multi-region and dual-region buckets do not match a single BYOC data plane Region. Use a regional bucket in the data plane's Region.

Step 1: Start the integration in Zilliz Cloud

1

Log in to the Zilliz Cloud console.

2

Open your GCP BYOC project and select Integrations in the left navigation.

3

Under Google Cloud Storage, click + Integration.

4

Enter a unique Integration Name and, optionally, an Integration Description.

5

Click Next.

Step 2: Create a custom Cloud Storage role

1

In the Google Cloud console, select the project that owns the external bucket.

2

Open IAM & Admin > Roles and click + Create role.

3

Enter a title such as Zilliz Bucket Integration, add the following permissions, and create the role.

plaintext

storage.buckets.get
storage.objects.create
storage.objects.list
storage.objects.get

Permission	Purpose
storage.buckets.get	Read bucket metadata and validate its location.
storage.objects.get	Read objects for external volumes and other read workflows.
storage.objects.list	List objects and prefixes in the bucket.
storage.objects.create	Write new objects for export and log-forwarding workflows.

Step 3: Specify the external Cloud Storage bucket

1

Return to Zilliz Cloud and click Next.

2

In Region, select the Region of the BYOC data plane that will access the bucket.

3

In the Cloud Storage Buckets page, confirm that the target bucket uses the same Region.

4

In Bucket Name, enter only the bucket name. Do not include gs://, an object prefix, or a trailing slash.

5

Click Next.

Step 4: Grant the BYOC storage GSA access

1

On the target bucket's details page, open the Permissions tab.

2

Select View by principals and click + Grant access.

3

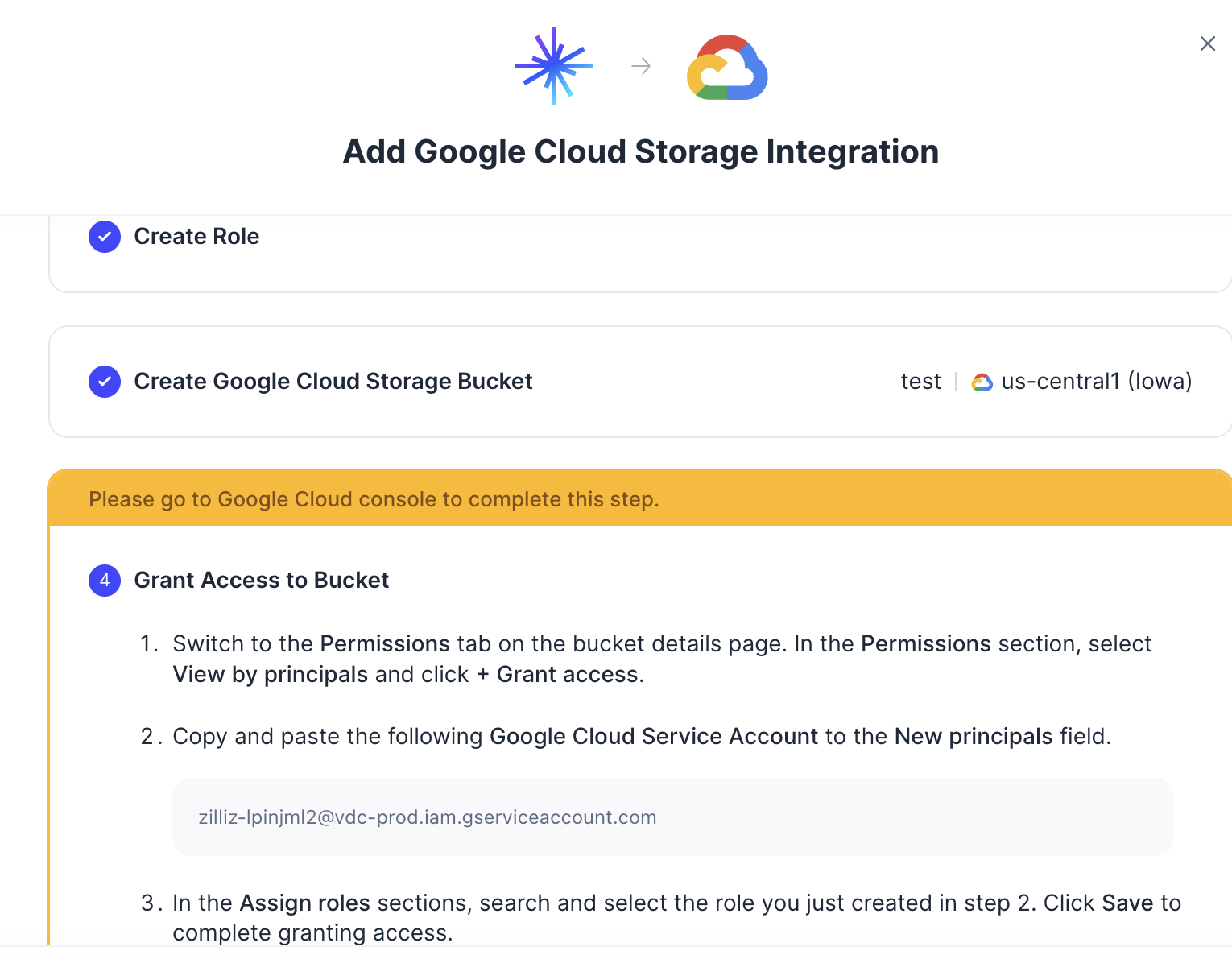

In step 4 of the Zilliz Cloud integration wizard, copy the displayed Google Cloud Service Account email and paste it into New principals. This displayed account is the storage GSA.

4

Under Assign roles, select the custom role created in step 2.

5

Click Save.

plaintext

Principal
<BYOC_STORAGE_SERVICE_ACCOUNT>@<BYOC_PROJECT_ID>.iam.gserviceaccount.com

Role
projects/<BUCKET_PROJECT_ID>/roles/<CUSTOM_ROLE_ID>

Scope
Target Cloud Storage bucket

Notes

Do not derive the email from a naming convention or substitute the GKE node service account, management service account, booter service account, or a Kubernetes service account. Copy the value displayed for the current integration.

Step 5: Validate and add the integration

1

Return to Zilliz Cloud and click Validate Integration.

2

If you granted the role recently, allow time for Google Cloud IAM propagation and retry validation.

3

When the status changes to Successful, click Add. The Google Cloud Storage integration is now available to supported workflows in the same Zilliz Cloud project and Region.

Security recommendations

• Create a dedicated custom role for bucket integrations and keep it limited to the four listed permissions.

• Grant the role on the target bucket rather than at project or organization scope.

• Keep Public Access Prevention enabled unless another workload has an explicit requirement.

• Do not create a service account key. The data plane uses its storage GSA through GKE Workload Identity.

• If an organization policy, IAM deny policy, VPC Service Controls perimeter, or Cloud KMS policy applies, ensure it permits the required data path.

Troubleshooting

Validation result	Likely cause	What to check
bucket region not match	The bucket location differs from the selected BYOC data plane Region.	Use a regional bucket in the exact data plane Region.
verify bucket access failed	The service account cannot read bucket metadata.	Confirm the custom role contains storage.buckets.get and is granted on the correct bucket.
Principal not found	The displayed storage GSA email was copied incorrectly or belongs to a different integration.	Copy the Google Cloud Service Account again from step 4 of the current Zilliz Cloud integration wizard and retry the IAM grant.
Integration validates but a later workflow cannot read or write	An object permission is missing or blocked by another policy.	Check storage.objects.get, storage.objects.list, and storage.objects.create, plus organization deny and KMS policies.
