MINHASH_LSH

Efficient deduplication and similarity search are critical for large-scale machine learning datasets, especially for tasks like cleaning training corpora for Large Language Models (LLMs). When dealing with millions or billions of documents, traditional exact matching becomes too slow and costly.

The MINHASH_LSH index in Zilliz Cloud enables fast, scalable, and accurate approximate deduplication by combining two powerful techniques:

  • MinHash: Quickly generates compact signatures (or "fingerprints") to estimate document similarity.

  • Locality-Sensitive Hashing (LSH): Rapidly finds groups of similar documents based on their MinHash signatures.

This guide walks you through the concepts, prerequisites, setup, and best practices for using MINHASH_LSH in Zilliz Cloud.

Overview​

Expand to see how it works

Jaccard similarity​

Jaccard similarity measures the overlap between two sets A and B, formally defined as:

J(A,B)=∣A∩B∣∣A∪B∣J(A, B) = \frac{|A \cap B|}{|A \cup B|}

Where its value ranges from 0 (completely disjoint) to 1 (identical).

However, computing Jaccard similarity exactly between all document pairs in large-scale datasets is computationally expensive—O(n²) in time and memory when n is large. This makes it infeasible for use cases such as LLM training corpus cleaning or web-scale document analysis.

MinHash signatures: Approximate Jaccard similarity​

MinHash is a probabilistic technique that offers an efficient way to estimate Jaccard similarity. It works by transforming each set into a compact signature vector, preserving enough information to approximate set similarity efficiently.

The core idea:

The more similar the two sets are, the more likely their MinHash signatures will match at the same positions. This property enables MinHash to approximate the Jaccard similarity between sets.

This property allows MinHash to approximate the Jaccard similarity between sets without needing to compare the full sets directly.

The MinHash process involves:

  1. Shingling: Convert documents into sets of overlapping token sequences (shingles)

  2. Hashing: Apply multiple independent hash functions to each shingle

  3. Min Selection: For each hash function, record the minimum hash value across all shingles

You can see the entire process illustrated below:

CCzEwT7uchMqI6bsxRJcK1qenEh

Notes

The number of hash functions used determines the dimensionality of the MinHash signature. Higher dimensions provide better approximation accuracy, at the cost of increased storage and computation.

LSH for MinHash​

While MinHash signatures significantly reduce the cost of computing exact Jaccard similarity between documents, exhaustively comparing every pair of signature vectors is still inefficient at scale.

To solve this, LSH is used. LSH enables fast approximate similarity search by ensuring that similar items are hashed into the same "bucket" with high probability — avoiding the need to compare every pair directly.

The process involves:

  1. Signature segmentation:

    An n-dimensional MinHash signature is divided into b bands. Each band contains r consecutive hash values, so the total signature length satisfies: n = b × r.

    For example, if you have a 128-dimensional MinHash signature (n = 128) and divide it into 32 bands (b = 32), then each band contains 4 hash values (r = 4).

  2. Band-level hashing:

    After segmentation, each band is independently processed using a standard hash function to assign it to a bucket. If two signatures produce the same hash value within a band—i.e., they fall into the same bucket—they are considered potential matches.

  3. Candidate selection:

    Pairs that collide in at least one band are selected as similarity candidates.

Notes

Why it works?

Mathematically, if two signatures have Jaccard similarity ss,

  • The probability they are identical in one row (hash position) is ss

  • The probability they match in all rr rows of a band is srs^r

  • The probability that they match in at least one band is $1 - (1 - s^r)^b$

For details, refer to Locality-sensitive hashing.

Consider three documents with 128-dimensional MinHash signatures:

E1dewMnqshua0ib7aHmcL10lnIe

First, LSH divides the 128-dimensional signature into 32 bands of 4 consecutive values each:

PhSMwS74rh25oybv9Docmfionze

Then, each band is hashed into different buckets using a hash function. Document pairs sharing buckets are selected as similarity candidates. In the example below, Document A and Document B are selected as similarity candidates as their hash results collide in Band 0:

RfmMwNkIvhlUFSb11alcP8fqnmf

Notes

The number of bands is controlled by the mh_lsh_band parameter. For more information, refer to Index building params.

MHJACCARD: Comparing MinHash signatures​

MinHash signatures approximate the Jaccard similarity between sets using fixed-length binary vectors. However, since these signatures do not preserve the original sets, standard metrics such as JACCARD, L2, or COSINE cannot be directly applied to compare them.

To address this, Zilliz Cloud introduces a specialized metric type called MHJACCARD, designed specifically for comparing MinHash signatures.

When using MinHash in Zilliz Cloud:

  • The vector field must be of type BINARY_VECTOR

  • The index_type must be MINHASH_LSH (or BIN_FLAT)

  • The metric_type must be set to MHJACCARD

Using other metrics will either be invalid or yield incorrect results.

For more information about this metric type, refer to MHJACCARD.

Deduplication workflow​

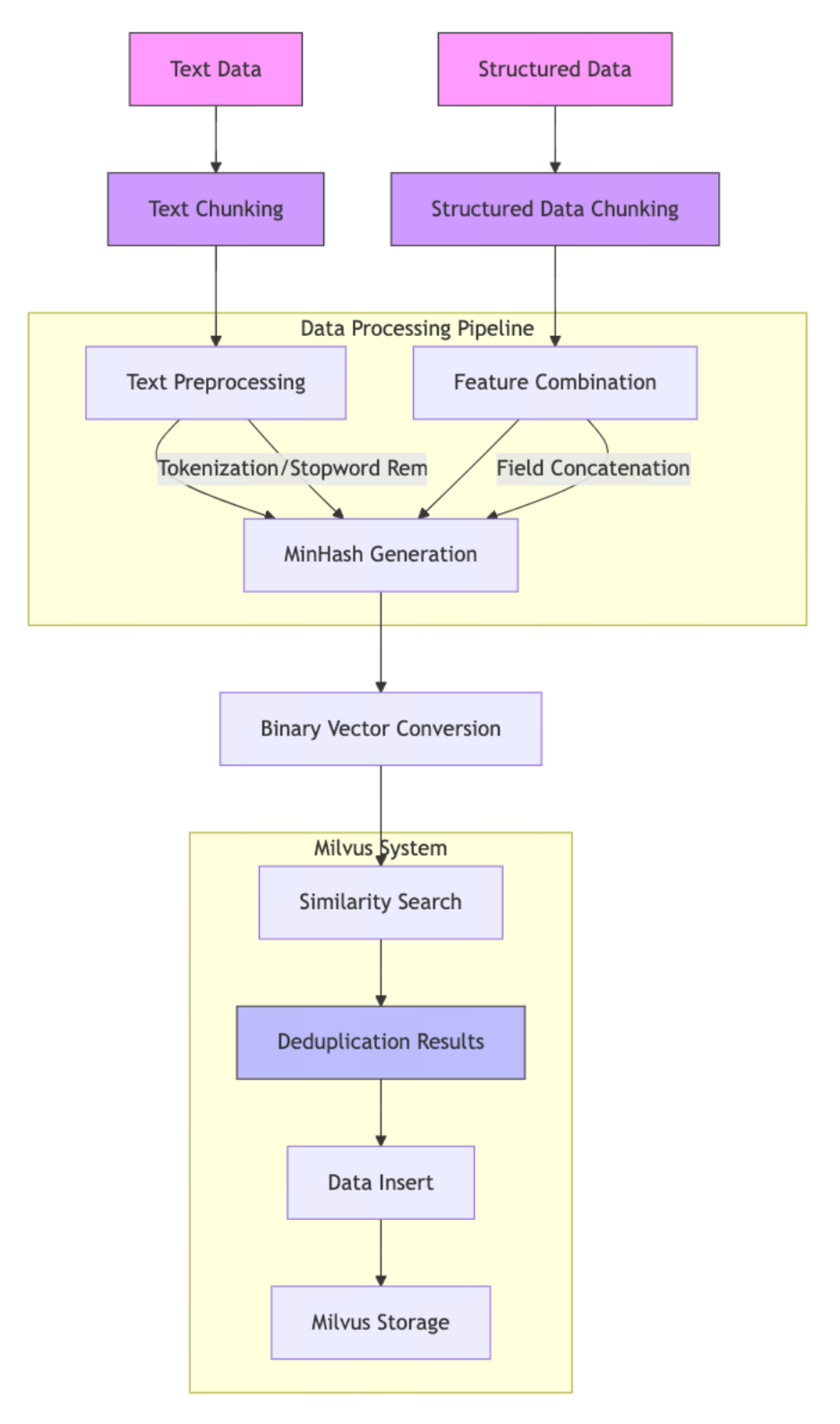

The deduplication process powered by MinHash LSH allows Zilliz Cloud to efficiently identify and filter out near-duplicate text or structured records before inserting them into the collection.

It9wwbCFwhfT0RbwosAcGltZneb

  1. Chunk & preprocess: Split incoming text data or structured data (e.g., records, fields) into chunks; normalize text (lowercasing, punctuation removal), and remove stopwords as needed.

  2. Feature construction: Build the token set used for MinHash (e.g., shingles from text; concatenated field tokens for structured data).

  3. MinHash signature generation: Compute MinHash signatures for each chunk or record.

  4. Binary vector conversion: Convert the signature to a binary vector compatible with Milvus.

  5. Search before insert: Use the MinHash LSH index to search the target collection for near-duplicates of the incoming item.

  6. Insert & store: Insert only unique items into the collection. They become searchable for future dedup checks.

Prerequisites​

Before using MinHash LSH in Zilliz Cloud, you must first generate MinHash signatures. These compact binary signatures approximate Jaccard similarity between sets and are required for MHJACCARD-based search in Zilliz Cloud.

Notes

You can prepare MinHash signatures for the MINHASH_LSH index in two ways:

  • Generate signatures yourself using external tools and insert them into a BINARY_VECTOR field, or

  • Use the built-in MinHash function to automatically generate compatible binary vectors from text. For the end-to-end workflow and configuration options of the MinHash function, see MinHash Function.

Choose a method to generate MinHash signatures​

Depending on your workload, you can choose:

  • Use Python's datasketch for simplicity (recommended for prototyping)

  • Use distributed tools (e.g., Spark, Ray) for large-scale datasets

  • Implement custom logic (NumPy, C++, etc.) if performance tuning is critical

In this guide, we use datasketch for simplicity and compatibility with Zilliz Cloud input format.

Install required libraries​

Install the necessary packages for this example:

bash
pip install pymilvus datasketch numpy

Generate MinHash signatures​

We'll generate 256-dimensional MinHash signatures, with each hash value represented as a 64-bit integer. This aligns with the expected vector format for MINHASH_LSH.

python
from datasketch import MinHash
import numpy as np

MINHASH_DIM = 256
HASH_BIT_WIDTH = 64

def generate_minhash_signature(text, num_perm=MINHASH_DIM) -> bytes:
    m = MinHash(num_perm=num_perm)
    for token in text.lower().split():
        m.update(token.encode("utf8"))
    return m.hashvalues.astype('>u8').tobytes()  # Returns 2048 bytes

Each signature is 256 × 64 bits = 2048 bytes. This byte string can be directly inserted into a BINARY_VECTOR field. For more information on binary vectors used in Zilliz Cloud, refer to Binary Vector.

By default, Zilliz Cloud uses only the MinHash signatures and LSH index to find approximate neighbors. This is fast but may return false positives or miss close matches.

If you want accurate Jaccard similarity, Zilliz Cloud supports refined search that uses original token sets. To enable it:

Token set extraction example:

python
def extract_token_set(text: str) -> str:
    tokens = set(text.lower().split())
    return " ".join(tokens)

Use MinHash LSH​

Once your MinHash vectors and original token sets are ready, you can store, index, and search them using Zilliz Cloud with MINHASH_LSH.

Connect to your cluster​

python
from pymilvus import MilvusClient

client = MilvusClient(uri="YOUR_CLUSTER_ENDPOINT")  # Update if your URI is different

Define collection schema​

Define a schema with:

  • The primary key

  • A BINARY_VECTOR field for the MinHash signatures

  • A VARCHAR field for the original token set (if refined search is enabled)

  • Optionally, a document field for original text

python
from pymilvus import DataType

VECTOR_DIM = MINHASH_DIM * HASH_BIT_WIDTH  # 256 × 64 = 16384 bits

schema = client.create_schema(auto_id=False, enable_dynamic_field=False)
schema.add_field("doc_id", DataType.INT64, is_primary=True)
schema.add_field("minhash_signature", DataType.BINARY_VECTOR, dim=VECTOR_DIM)
schema.add_field("token_set", DataType.VARCHAR, max_length=1000)  # required for refinement
schema.add_field("document", DataType.VARCHAR, max_length=1000)

Build index parameters and create collection​

Build a MINHASH_LSH index with Jaccard refinement enabled:

python
index_params = client.prepare_index_params()
index_params.add_index(
    field_name="minhash_signature",
    index_type="MINHASH_LSH",
    metric_type="MHJACCARD",
    params={
        "mh_element_bit_width": HASH_BIT_WIDTH,  # Must match signature bit width
        "mh_lsh_band": 16,                       # Band count (256/16 = 16 hashes per band)
        "with_raw_data": True                    # Required for Jaccard refinement
    }
)

client.create_collection("minhash_demo", schema=schema, index_params=index_params)

For more information on index building parameters, refer to Index building params.

Insert data​

For each document, prepare:

  • A binary MinHash signature

  • A serialized token set string

  • (Optionally) the original text

python
documents = [
    "machine learning algorithms process data automatically",
    "deep learning uses neural networks to model patterns"
]

insert_data = []
for i, doc in enumerate(documents):
    sig = generate_minhash_signature(doc)
    token_str = extract_token_set(doc)
    insert_data.append({
        "doc_id": i,
        "minhash_signature": sig,
        "token_set": token_str,
        "document": doc
    })

client.insert("minhash_demo", insert_data)
client.flush("minhash_demo")

Zilliz Cloud supports two modes of similarity search using MinHash LSH:

  • Approximate search — uses only MinHash signatures and LSH for fast but probabilistic results.

  • Refined search — re-computes Jaccard similarity using original token sets for improved accuracy.

5.1 Prepare the query​

To perform a similarity search, generate a MinHash signature for the query document. This signature must match the same dimension and encoding format used during data insertion.

python
query_text = "deep learning uses neural networks to model patterns"
query_sig = generate_minhash_signature(query_text)

5.2 Approximate search (LSH-only)​

This is fast and scalable but may miss close matches or include false positives:

python
search_params={
    "metric_type": "MHJACCARD",
    "params": {}
}

approx_results = client.search(
    collection_name="minhash_demo",
    data=[query_sig],
    anns_field="minhash_signature",
    search_params=search_params,
    limit=3,
    output_fields=["doc_id", "document"],
    consistency_level="Strong"
)

for i, hit in enumerate(approx_results[0]):
    sim = hit['distance']
    print(f"{i+1}. Similarity: {sim:.3f} | {hit['entity']['document']}")

This enables accurate Jaccard comparison using the original token sets stored in Zilliz Cloud. It's slightly slower but recommended for quality-sensitive tasks:

python
search_params = {
    "metric_type": "MHJACCARD",
    "params": {
        "mh_search_with_jaccard": True,  # Enable real Jaccard computation
        "refine_k": 5                    # Refine top 5 candidates
    }
}

refined_results = client.search(
    collection_name="minhash_demo",
    data=[query_sig],
    anns_field="minhash_signature",
    search_params=search_params,
    limit=3,
    output_fields=["doc_id", "document"],
    consistency_level="Strong"
)

for i, hit in enumerate(refined_results[0]):
    sim = hit['distance']
    print(f"{i+1}. Similarity: {sim:.3f} | {hit['entity']['document']}")

Index params​

This section provides an overview of the parameters used for building an index and performing searches on the index.

Index building params​

The following table lists the parameters that can be configured in params when building an index.

ParameterDescriptionValue RangeTuning Suggestion
mh_element_bit_widthBit width of each hash value in the MinHash signature. Must be divisible by 8.8, 16, 32, 64Use 32 for balanced performance and accuracy. Use 64 for higher precision with larger datasets. Use 16 to save memory with acceptable accuracy loss.
mh_lsh_bandNumber of bands to divide the MinHash signature for LSH. Controls the recall-performance tradeoff.[1, signature_length]For 128-dim signatures: start with 32 bands (4 values/band). Increase to 64 for higher recall, decrease to 16 for better performance. Must divide signature length evenly.
mh_lsh_code_in_memWhether to store LSH hash codes in anonymous memory (true) or use memory mapping (false).true, falseUse false for large datasets (>1M sets) to reduce memory usage. Use true for smaller datasets requiring maximum search speed.
with_raw_dataWhether to store original MinHash signatures alongside LSH codes for refinement.true, falseUse true when high precision is required and storage cost is acceptable. Use false to minimize storage overhead with slight accuracy reduction.
mh_lsh_bloom_false_positive_probFalse positive probability for Bloom filter used in LSH bucket optimization.[0.001, 0.1]Use 0.01 for balanced memory usage and accuracy. Lower values (0.001) reduce false positives but increase memory. Higher values (0.05) save memory but may reduce precision.

Index-specific search params​

The following table lists the parameters that can be configured in search_params.params when searching on the index.

ParameterDescriptionValue RangeTuning Suggestion
mh_search_with_jaccardWhether to perform exact Jaccard similarity computation on candidate results for refinement.true, falseUse true for applications requiring high precision (e.g., deduplication). Use false for faster approximate search when slight accuracy loss is acceptable.
refine_kNumber of candidates to retrieve before Jaccard refinement. Only effective when mh_search_with_jaccard is true.[top_k, top_k * 10]Set to 2-5x the desired top_k for good recall-performance balance. Higher values improve recall but increase computation cost.
mh_lsh_batch_searchWhether to enable batch optimization for multiple simultaneous queries.true, falseUse true when searching with multiple queries simultaneously for better throughput. Use false for single-query scenarios to reduce memory overhead.
