Import from a JSON file

JSON (JavaScript Object Notation) is a lightweight, human-readable data format that machines can parse and generate easily. Language-independent, it follows conventions familiar to C-family language programmers, making it an ideal data interchange format.

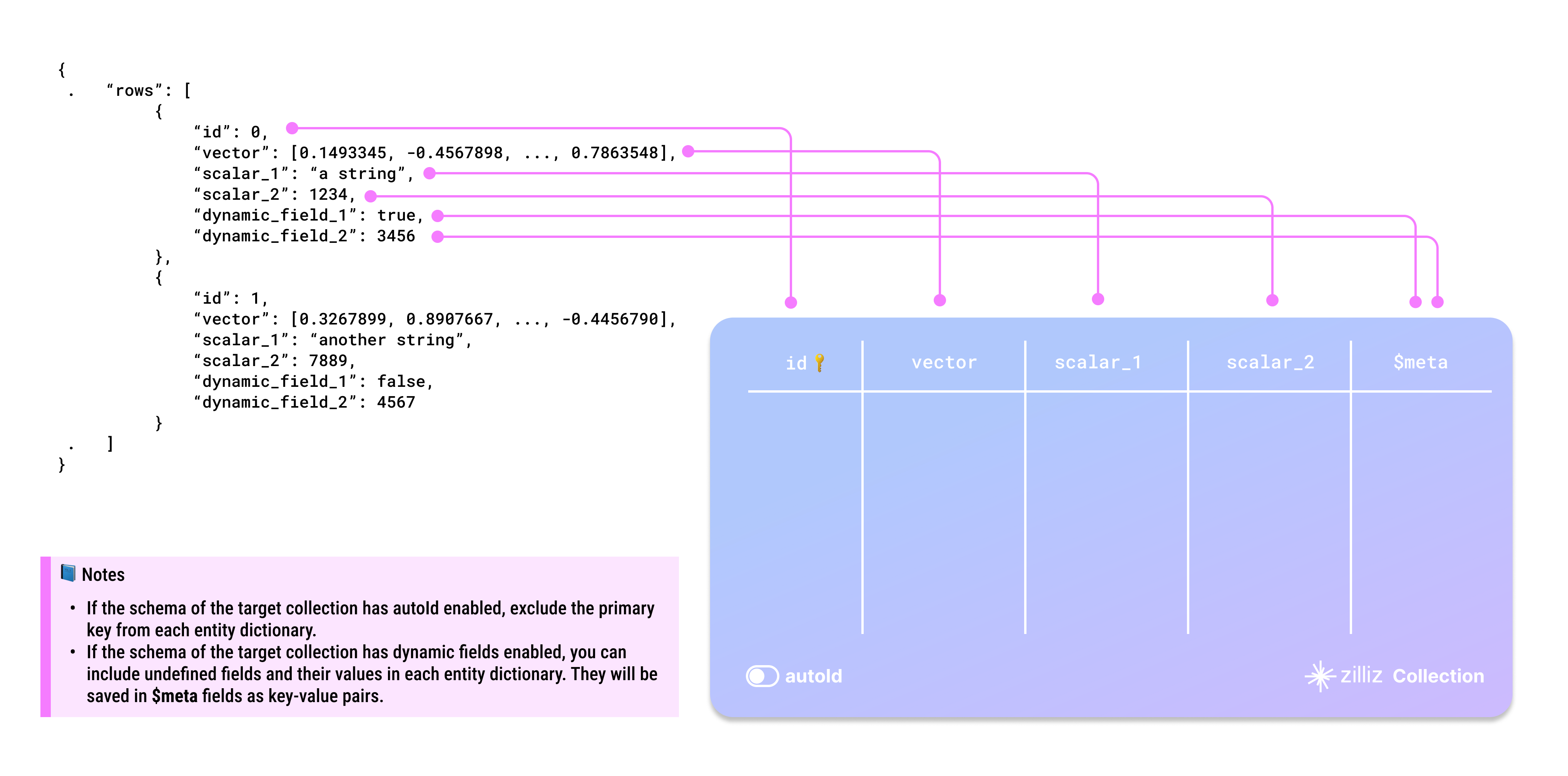

You are advised to use the BulkWriter tool to prepare your raw data into JSON files. The following figure demonstrates how your raw data can be mapped into a JSON file.

json_data_structure

📘Notes
  • Whether to enable AutoID

The id field serves as the primary field of the collection. To make the primary field automatically increment, you can enable AutoID in the schema. In this case, you should exclude the id field from each row in the source data.

  • Whether to enable dynamic fields

When the target collection enables dynamic fields, if you need to store fields that are not included in the pre-defined schema, you can specify the $meta column during the write operation and provide the corresponding key-value data.

  • Case-sensitive

Dictionary keys and collection field names are case-sensitive. Ensure that the dictionary keys in your data exactly match the field names in the target collection. If there is a field named id in the target collection, each entity dictionary should have a key named id. Using ID or Id results in errors.

Directory structure​

If you prefer to prepare your data into JSON files, place all JSON files directly into the source data folder as shown in the tree diagram below.

├── json-folder
│ ├── 1.json
│ └── 2.json

Import data​

Once your data is ready, you can use either of the following methods to import them into your Zilliz Cloud collection.

📘Notes

If your files are relatively small, it is recommended to use the folder or multiple-path method to import them all at once. This approach allows for internal optimizations during the import process, which helps reduce resource consumption later.

You can also import your data on the Zilliz Cloud console using Milvus SDKs. For details, refer to Import Data (Console) and Import Data (SDK).

When importing files from multiple paths, include each JSON file path in a separate list, then group all the lists into a higher-level list as in the following code example.

curl --request POST \
--url "https://api.cloud.zilliz.com/v2/vectordb/jobs/import/create" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Accept: application/json" \
--header "Content-Type: application/json" \
-d '{
"clusterId": "inxx-xxxxxxxxxxxxxxx",
"collectionName": "medium_articles",
"partitionName": "",
"objectUrls": [
["s3://bucket-name/json-folder-1/1.json"],
["s3://bucket-name/json-folder-2/1.json"],
["s3://bucket-name/json-folder-3/"]
],
"accessKey": "",
"secretKey": ""
}'

Import files from a folder​

If the source folder contains only the JSON files to import, you can simply include the source folder in the request as follows:

curl --request POST \
--url "https://api.cloud.zilliz.com/v2/vectordb/jobs/import/create" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Accept: application/json" \
--header "Content-Type: application/json" \
-d '{
"clusterId": "inxx-xxxxxxxxxxxxxxx",
"collectionName": "medium_articles",
"partitionName": "",
"objectUrls": [
["s3://bucket-name/json-folder/"]
],
"accessKey": "",
"secretKey": ""
}'

Import a single file​

If your prepared data file is a single JSON file, import it as demonstrated in the following code example.

curl --request POST \
--url "https://api.cloud.zilliz.com/v2/vectordb/jobs/import/create" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Accept: application/json" \
--header "Content-Type: application/json" \
-d '{
"clusterId": "inxx-xxxxxxxxxxxxxxx",
"collectionName": "medium_articles",
"partitionName": "",
"objectUrls": [
["s3://bucket-name/json-folder/1.json"]
],
"accessKey": "",
"secretKey": ""
}'

Storage paths​

Zilliz Cloud supports data import from your cloud storage. The table below lists the possible storage paths for your data files.

Cloud

Quick Examples

AWS S3

s3://bucket-name/json-folder/

s3://bucket-name/json-folder/data.json

Google Cloud Storage

gs://bucket-name/json-folder/

gs://bucket-name/json-folder/data.json

Azure Bolb

https://myaccount.blob.core.windows.net/bucket-name/json-folder/

https://myaccount.blob.core.windows.net/bucket-name/json-folder/data.json

Limits​

There are some limits you need to observe when you import data in the JSON format from your cloud storage. Note that a valid JSON file has a root key named rows, the corresponding value of which is a list of dictionaries, each representing an entity that matches the schema of the target collection.

Item

Description

Multiple files per import

Yes

Maximum file size per import

Free cluster: 512 MB in total

Serverless and Dedicated cluster:

  • Individual file size: 10 GB

  • Total file size: 100 GB

Applicable data file locations

Local and remote files

You can either rebuild your data on your own by referring to Prepare the data file or use the BulkWriter tool to generate the source data file. Click here to download the prepared sample data based on the schema in the above diagram.
