Multi-Vector Hybrid Search
In many applications, data is represented using various fields like title and description, or through different modalities such as text, images, and audio. Hybrid search enhances accuracy by combining searches across these diverse fields. Zilliz Cloud supports this feature with multiple vector fields, conducting several approximate nearest neighbor (ANN) searches simultaneously. Multi-vector hybrid search typically yields better results than a single search. This approach is especially valuable in domains that demand a complex understanding of content, such as e-commerce search, academic paper search, and recommendation systems.

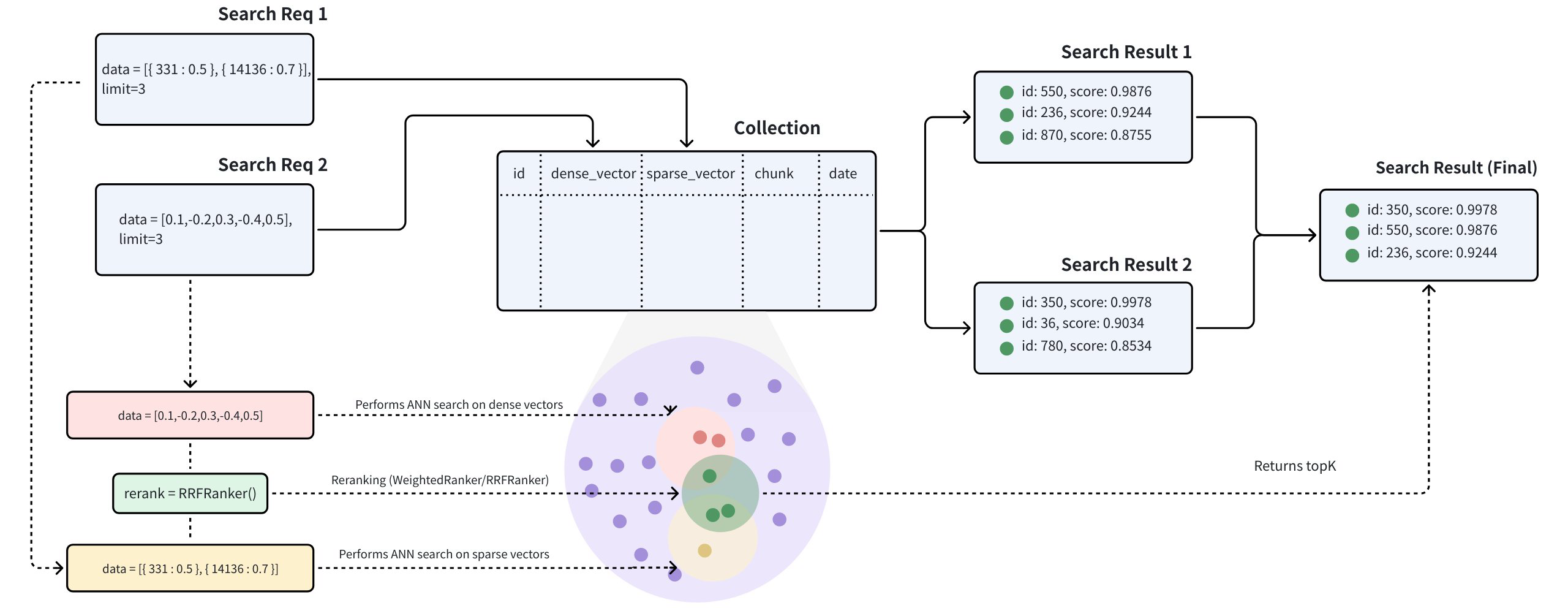

The multi-vector hybrid search integrates different search methods or spans embeddings from various modalities:
-
Sparse-Dense Vector Search: Dense Vector are excellent for capturing semantic relationships, while Sparse Vector are highly effective for precise keyword matching. Hybrid search combines these approaches to provide both a broad conceptual understanding and exact term relevance, thus improving search results. By leveraging the strengths of each method, hybrid search overcomes the limitations of indiviual approaches, offering better performance for complex queries.
-
Multimodal Vector Search: Multimodal vector search is a powerful technique that allows you to search across various data types, including text, images, audio, and others. The main advantage of this approach is its ability to unify different modalities into a seamless and cohesive search experience. For instance, in product search, a user might input a text query to find products described with both text and images. By combining these modalities through a hybrid search method, you can enhance search accuracy or enrich the search results.
Example
Let's consider a product search scenario where each product includes a text description and an image. Based on the available data, we can conduct three types of searches:
-
Semantic Text Search: This involves querying the text description of the product using dense vectors. Text embeddings can be generated using models such as BERT and Transformers or services like OpenAI.
-
Full-Text Search: Here, we query the text description of the product using a keyword match with sparse vectors. Algorithms like BM25 or sparse embedding models such as BGE-M3 or SPLADE can be utilized for this purpose.
-
Multimodal Image Search: This method queries over the image using a text query with dense vectors. Image embeddings can be generated with models like CLIP.
This guide will walk you through an example of a multimodal hybrid search combining the above search methods, given the raw text description and image embeddings of products. We will demonstrate how to store multi-vector data and perform hybrid searches with a reranking strategy.
Create a collection with multiple vector fields
The process of creating a collection involves three key steps: defining the collection schema, configuring the index parameters, and creating the collection.
Define schema
For multi-vector hybrid search, we should define multiple vector fields within a collection schema. By default, each collection can accommodate up to 4 vector fields. However, if necessary, you can contact us to include up to 10 vector fields in your collections.
This example incorporates the following fields into the schema:
-
id
: Serves as the primary key for storing text IDs. This field is of data typeINT64
. -
text
: Used for storing textual content. This field is of the data typeVARCHAR
with a maximum length of 1000 bytes. Theenable_analyzer
option is set toTrue
to facilitate full-text search. -
text_dense
: Used to store dense vectors of the texts. This field is of the data typeFLOAT_VECTOR
with a vector dimension of 768. -
text_sparse
: Used to store sparse vectors of the texts. This field is of the data typeSPARSE_FLOAT_VECTOR
. -
image_dense
: Used to store dense vectors of the product images. This field is of the data typeFLOAT_VETOR
with a vector dimension of 512.
Since we will use the built-in BM25 algorithm to perform a full-text search on the text field, it is necessary to add the Milvus Function
to the schema. For further details, please refer to Full Text Search.
- Python
- Java
- Go
- NodeJS
- cURL
from pymilvus import (
MilvusClient, DataType, Function, FunctionType
)
client = MilvusClient(
uri="YOUR_CLUSTER_ENDPOINT",
token="YOUR_CLUSTER_TOKEN"
)
# Init schema with auto_id disabled
schema = MilvusClient.create_schema(auto_id=False)
# Add fields to schema
schema.add_field(field_name="id", datatype=DataType.INT64, is_primary=True, description="product id")
schema.add_field(field_name="text", datatype=DataType.VARCHAR, max_length=1000, enable_analyzer=True, description="raw text of product description")
schema.add_field(field_name="text_dense", datatype=DataType.FLOAT_VECTOR, dim=768, description="text dense embedding")
schema.add_field(field_name="text_sparse", datatype=DataType.SPARSE_FLOAT_VECTOR, description="text sparse embedding auto-generated by the built-in BM25 function")
schema.add_field(field_name="image_dense", datatype=DataType.FLOAT_VECTOR, dim=512, description="image dense embedding")
# Add function to schema
bm25_function = Function(
name="text_bm25_emb",
input_field_names=["text"],
output_field_names=["text_sparse"],
function_type=FunctionType.BM25,
)
schema.add_function(bm25_function)
import io.milvus.v2.client.ConnectConfig;
import io.milvus.v2.client.MilvusClientV2;
import io.milvus.v2.common.DataType;
import io.milvus.common.clientenum.FunctionType;
import io.milvus.v2.service.collection.request.AddFieldReq;
import io.milvus.v2.service.collection.request.CreateCollectionReq;
import io.milvus.v2.service.collection.request.CreateCollectionReq.Function;
import java.util.*;
MilvusClientV2 client = new MilvusClientV2(ConnectConfig.builder()
.uri("YOUR_CLUSTER_ENDPOINT")
.token("YOUR_CLUSTER_TOKEN")
.build());
CreateCollectionReq.CollectionSchema schema = client.createSchema();
schema.addField(AddFieldReq.builder()
.fieldName("id")
.dataType(DataType.Int64)
.isPrimaryKey(true)
.autoID(false)
.build());
schema.addField(AddFieldReq.builder()
.fieldName("text")
.dataType(DataType.VarChar)
.maxLength(1000)
.enableAnalyzer(true)
.build());
schema.addField(AddFieldReq.builder()
.fieldName("text_dense")
.dataType(DataType.FloatVector)
.dimension(768)
.build());
schema.addField(AddFieldReq.builder()
.fieldName("text_sparse")
.dataType(DataType.SparseFloatVector)
.build());
schema.addField(AddFieldReq.builder()
.fieldName("image_dense")
.dataType(DataType.FloatVector)
.dimension(512)
.build());
schema.addFunction(Function.builder()
.functionType(FunctionType.BM25)
.name("text_bm25_emb")
.inputFieldNames(Collections.singletonList("text"))
.outputFieldNames(Collections.singletonList("text_sparse"))
.build());
import (
"context"
"fmt"
"github.com/milvus-io/milvus/client/v2/column"
"github.com/milvus-io/milvus/client/v2/entity"
"github.com/milvus-io/milvus/client/v2/index"
"github.com/milvus-io/milvus/client/v2/milvusclient"
)
ctx, cancel := context.WithCancel(context.Background())
defer cancel()
milvusAddr := "YOUR_CLUSTER_ENDPOINT"
client, err := milvusclient.New(ctx, &milvusclient.ClientConfig{
Address: milvusAddr,
})
if err != nil {
fmt.Println(err.Error())
// handle error
}
defer client.Close(ctx)
function := entity.NewFunction().
WithName("text_bm25_emb").
WithInputFields("text").
WithOutputFields("text_sparse").
WithType(entity.FunctionTypeBM25)
schema := entity.NewSchema()
schema.WithField(entity.NewField().
WithName("id").
WithDataType(entity.FieldTypeInt64).
WithIsPrimaryKey(true),
).WithField(entity.NewField().
WithName("text").
WithDataType(entity.FieldTypeVarChar).
WithEnableAnalyzer(true).
WithMaxLength(1000),
).WithField(entity.NewField().
WithName("text_dense").
WithDataType(entity.FieldTypeFloatVector).
WithDim(768),
).WithField(entity.NewField().
WithName("text_sparse").
WithDataType(entity.FieldTypeSparseVector),
).WithField(entity.NewField().
WithName("image_dense").
WithDataType(entity.FieldTypeFloatVector).
WithDim(512),
).WithFunction(function)
import { MilvusClient, DataType } from "@zilliz/milvus2-sdk-node";
const address = "YOUR_CLUSTER_ENDPOINT";
const token = "YOUR_CLUSTER_TOKEN";
const client = new MilvusClient({address, token});
// Define fields
const fields = [
{
name: "id",
data_type: DataType.Int64,
is_primary_key: true,
auto_id: false
},
{
name: "text",
data_type: DataType.VarChar,
max_length: 1000,
enable_match: true
},
{
name: "text_dense",
data_type: DataType.FloatVector,
dim: 768
},
{
name: "text_sparse",
data_type: DataType.SPARSE_FLOAT_VECTOR
},
{
name: "image_dense",
data_type: DataType.FloatVector,
dim: 512
}
];
// define function
const functions = [
{
name: "text_bm25_emb",
description: "text bm25 function",
type: FunctionType.BM25,
input_field_names: ["text"],
output_field_names: ["text_sparse"],
params: {},
},
];
export bm25Function='{
"name": "text_bm25_emb",
"type": "BM25",
"inputFieldNames": ["text"],
"outputFieldNames": ["text_sparse"],
"params": {}
}'
export schema='{
"autoId": false,
"functions": [$bm25Function],
"fields": [
{
"fieldName": "id",
"dataType": "Int64",
"isPrimary": true
},
{
"fieldName": "text",
"dataType": "VarChar",
"elementTypeParams": {
"max_length": 1000,
"enable_analyzer": true
}
},
{
"fieldName": "text_dense",
"dataType": "FloatVector",
"elementTypeParams": {
"dim": "768"
}
},
{
"fieldName": "text_sparse",
"dataType": "SparseFloatVector"
},
{
"fieldName": "image_dense",
"dataType": "FloatVector",
"elementTypeParams": {
"dim": "512"
}
}
]
}'
Create index
- Python
- Java
- Go
- NodeJS
- cURL
from pymilvus import MilvusClient
# Prepare index parameters
index_params = client.prepare_index_params()
# Add indexes
index_params.add_index(
field_name="text_dense",
index_name="text_dense_index",
index_type="AUTOINDEX",
metric_type="IP"
)
index_params.add_index(
field_name="text_sparse",
index_name="text_sparse_index",
index_type="AUTOINDEX",
metric_type="BM25"
)
index_params.add_index(
field_name="image_dense",
index_name="image_dense_index",
index_type="AUTOINDEX",
metric_type="IP"
)
import io.milvus.v2.common.IndexParam;
import java.util.*;
Map<String, Object> denseParams = new HashMap<>();
IndexParam indexParamForTextDense = IndexParam.builder()
.fieldName("text_dense")
.indexName("text_dense_index")
.indexType(IndexParam.IndexType.AUTOINDEX)
.metricType(IndexParam.MetricType.IP)
.build();
Map<String, Object> sparseParams = new HashMap<>();
sparseParams.put("inverted_index_algo": "DAAT_MAXSCORE");
IndexParam indexParamForTextSparse = IndexParam.builder()
.fieldName("text_sparse")
.indexName("text_sparse_index")
.indexType(IndexParam.IndexType.SPARSE_INVERTED_INDEX)
.metricType(IndexParam.MetricType.BM25)
.extraParams(sparseParams)
.build();
IndexParam indexParamForImageDense = IndexParam.builder()
.fieldName("image_dense")
.indexName("image_dense_index")
.indexType(IndexParam.IndexType.AUTOINDEX)
.metricType(IndexParam.MetricType.IP)
.build();
List<IndexParam> indexParams = new ArrayList<>();
indexParams.add(indexParamForTextDense);
indexParams.add(indexParamForTextSparse);
indexParams.add(indexParamForImageDense);
indexOption1 := milvusclient.NewCreateIndexOption("my_collection", "text_dense",
index.NewAutoIndex(index.MetricType(entity.IP)))
indexOption2 := milvusclient.NewCreateIndexOption("my_collection", "text_sparse",
index.NewSparseInvertedIndex(entity.BM25, 0.2))
indexOption3 := milvusclient.NewCreateIndexOption("my_collection", "image_dense",
index.NewAutoIndex(index.MetricType(entity.IP)))
)
const index_params = [{
field_name: "text_dense",
index_name: "text_dense_index",
index_type: "AUTOINDEX",
metric_type: "IP"
},{
field_name: "text_sparse",
index_name: "text_sparse_index",
index_type: "IndexType.SPARSE_INVERTED_INDEX",
metric_type: "BM25",
params: {
inverted_index_algo: "DAAT_MAXSCORE",
}
},{
field_name: "image_dense",
index_name: "image_dense_index",
index_type: "AUTOINDEX",
metric_type: "IP"
}]
export indexParams='[
{
"fieldName": "text_dense",
"metricType": "IP",
"indexName": "text_dense_index",
"indexType":"AUTOINDEX"
},
{
"fieldName": "text_sparse",
"metricType": "BM25",
"indexName": "text_sparse_index",
"indexType": "SPARSE_INVERTED_INDEX",
"params":{"inverted_index_algo": "DAAT_MAXSCORE"}
},
{
"fieldName": "image_dense",
"metricType": "IP",
"indexName": "image_dense_index",
"indexType":"AUTOINDEX"
}
]'
Create collection
Create a collection named demo
with the collection schema and indexes configured in the previous two steps.
- Python
- Java
- Go
- NodeJS
- cURL
from pymilvus import MilvusClient
client.create_collection(
collection_name="my_collection",
schema=schema,
index_params=index_params
)
CreateCollectionReq createCollectionReq = CreateCollectionReq.builder()
.collectionName("my_collection")
.collectionSchema(schema)
.indexParams(indexParams)
.build();
client.createCollection(createCollectionReq);
err = client.CreateCollection(ctx,
milvusclient.NewCreateCollectionOption("my_collection", schema).
WithIndexOptions(indexOption1, indexOption2))
if err != nil {
fmt.Println(err.Error())
// handle error
}
res = await client.createCollection({
collection_name: "my_collection",
fields: fields,
index_params: index_params,
})
export CLUSTER_ENDPOINT="YOUR_CLUSTER_ENDPOINT"
export TOKEN="YOUR_CLUSTER_TOKEN"
curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/collections/create" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d "{
\"collectionName\": \"my_collection\",
\"schema\": $schema,
\"indexParams\": $indexParams
}"
Insert data
This section inserts data into the my_collection
collection based on the schema defined earlier. During insert, ensure all fields, except those with auto-generated values, are provided with data in the correct format. In this example:
-
id
: an integer representing the product ID -
text
: a string containing the product description -
text_dense
: a list of 768 floating-point values representing the dense embedding of the text description -
image_dense
: a list of 512 floating-point values representing the dense embedding of the product image
You may use the same or different models to generate dense embeddings for each field. In this example, the two dense embeddings have different dimensions, suggesting they were generated by different models. When defining each search later, be sure to use the corresponding model to generate the appropriate query embedding.
Since this example uses the built-in BM25 function to generate sparse embeddings from the text field, you do not need to supply sparse vectors manually. However, if you opt not to use BM25, you must precompute and provide the sparse embeddings yourself.
- Python
- Java
- Go
- NodeJS
- cURL
from pymilvus import MilvusClient
data=[
{
"id": 0,
"text": "Red cotton t-shirt with round neck",
"text_dense": [0.3580376395471989, -0.6023495712049978, 0.18414012509913835, ...],
"image_dense": [0.6366019600530924, -0.09323198122475052, ...]
},
{
"id": 1,
"text": "Wireless noise-cancelling over-ear headphones",
"text_dense": [0.19886812562848388, 0.06023560599112088, 0.6976963061752597, ...],
"image_dense": [0.6414180010301553, 0.8976979978567611, ...]
},
{
"id": 2,
"text": "Stainless steel water bottle, 500ml",
"dense": [0.43742130801983836, -0.5597502546264526, 0.6457887650909682, ...],
"image_dense": [-0.6901259768402174, 0.6100500332193755, ...]
}
]
res = client.insert(
collection_name="my_collection",
data=data
)
import com.google.gson.Gson;
import com.google.gson.JsonObject;
import io.milvus.v2.service.vector.request.InsertReq;
Gson gson = new Gson();
JsonObject row1 = new JsonObject();
row1.addProperty("id", 0);
row1.addProperty("text", "Red cotton t-shirt with round neck");
row1.add("text_dense", gson.toJsonTree(text_dense1));
row1.add("image_dense", gson.toJsonTree(image_dense));
JsonObject row2 = new JsonObject();
row2.addProperty("id", 1);
row2.addProperty("text", "Wireless noise-cancelling over-ear headphones");
row2.add("text_dense", gson.toJsonTree(text_dense2));
row2.add("image_dense", gson.toJsonTree(image_dense2));
JsonObject row3 = new JsonObject();
row3.addProperty("id", 2);
row3.addProperty("text", "Stainless steel water bottle, 500ml");
row3.add("text_dense", gson.toJsonTree(dense3));
row3.add("image_dense", gson.toJsonTree(sparse3));
List<JsonObject> data = Arrays.asList(row1, row2, row3);
InsertReq insertReq = InsertReq.builder()
.collectionName("my_collection")
.data(data)
.build();
InsertResp insertResp = client.insert(insertReq);
_, err = client.Insert(ctx, milvusclient.NewColumnBasedInsertOption("my_collection").
WithInt64Column("id", []int64{0, 1, 2}).
WithVarcharColumn("text", []string{
"Red cotton t-shirt with round neck",
"Wireless noise-cancelling over-ear headphones",
"Stainless steel water bottle, 500ml",
}).
WithFloatVectorColumn("text_dense", 768, [][]float32{
{0.3580376395471989, -0.6023495712049978, 0.18414012509913835, ...},
{0.19886812562848388, 0.06023560599112088, 0.6976963061752597, ...},
{0.43742130801983836, -0.5597502546264526, 0.6457887650909682, ...},
}).
WithFloatVectorColumn("image_dense", 512, [][]float32{
{0.6366019600530924, -0.09323198122475052, ...},
{0.6414180010301553, 0.8976979978567611, ...},
{-0.6901259768402174, 0.6100500332193755, ...},
}).
if err != nil {
fmt.Println(err.Error())
// handle err
}
const { MilvusClient, DataType } = require("@zilliz/milvus2-sdk-node")
var data = [
{id: 0, text: "Red cotton t-shirt with round neck" , text_dense: [0.3580376395471989, -0.6023495712049978, 0.18414012509913835, ...], image_dense: [0.6366019600530924, -0.09323198122475052, ...]},
{id: 1, text: "Wireless noise-cancelling over-ear headphones" , text_dense: [0.19886812562848388, 0.06023560599112088, 0.6976963061752597, ...], image_dense: [0.6414180010301553, 0.8976979978567611, ...]},
{id: 2, text: "Stainless steel water bottle, 500ml" , text_dense: [0.43742130801983836, -0.5597502546264526, 0.6457887650909682, ...], image_dense: [-0.6901259768402174, 0.6100500332193755, ...]}
]
var res = await client.insert({
collection_name: "my_collection",
data: data,
})
curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/entities/insert" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d '{
"data": [
{"id": 0, "text": "Red cotton t-shirt with round neck" , "text_dense": [0.3580376395471989, -0.6023495712049978, 0.18414012509913835, ...], "image_dense": [0.6366019600530924, -0.09323198122475052, ...]},
{"id": 1, "text": "Wireless noise-cancelling over-ear headphones" , "text_dense": [0.19886812562848388, 0.06023560599112088, 0.6976963061752597, ...], "image_dense": [0.6414180010301553, 0.8976979978567611, ...]},
{"id": 2, "text": "Stainless steel water bottle, 500ml" , "text_dense": [0.43742130801983836, -0.5597502546264526, 0.6457887650909682, ...], "image_dense": [-0.6901259768402174, 0.6100500332193755, ...]}
],
"collectionName": "my_collection"
}'
Perform Hybrid Search
Create multiple AnnSearchRequest instances
Hybrid Search is implemented by creating multiple AnnSearchRequest
in the hybrid_search()
function, where each AnnSearchRequest
represents a basic ANN search request for a specific vector field. Therefore, before conducting a Hybrid Search, it is necessary to create an AnnSearchRequest
for each vector field.
In addition, by configuring the expr
parameter in an AnnSearchRequest
, you can set the filtering conditions for your hybrid search. Please refer to Filtered Search and Filtering.
In Hybrid Search, each AnnSearchRequest
supports only one query data.
To demonstrate the capabilities of various search vector fields, we will construct three AnnSearchRequest
search requests using a sample query. We will also use its pre-computed dense vectors for this process. The search requests will target the following vector fields:
-
text_dense
for semantic text search, allowing for contextual understanding and retrieval based on meaning rather than direct keyword matching. -
text_sparse
for full-text search or keyword matching, focusing on exact word or phrase matches within the text. -
image_dense
for multimodal text-to-image search, to retrieve relevant product images based on the semantic content of the query.
- Python
- Java
- Go
- NodeJS
- cURL
from pymilvus import AnnSearchRequest
query_text = "white headphones, quiet and comfortable"
query_dense_vector = [0.3580376395471989, -0.6023495712049978, 0.5142999509918703, ...]
query_multimodal_vector = [0.015829865178701663, 0.5264158340734488, ...]
# text semantic search (dense)
search_param_1 = {
"data": [query_dense_vector],
"anns_field": "text_dense",
"param": {"nprobe": 10},
"limit": 2
}
request_1 = AnnSearchRequest(**search_param_1)
# full-text search (sparse)
search_param_2 = {
"data": [query_text],
"anns_field": "text_sparse",
"param": {"drop_ratio_search": 0.2},
"limit": 2
}
request_2 = AnnSearchRequest(**search_param_2)
# text-to-image search (multimodal)
search_param_3 = {
"data": [query_multimodal_vector],
"anns_field": "image_dense",
"param": {"nprobe": 10},
"limit": 2
}
request_3 = AnnSearchRequest(**search_param_3)
reqs = [request_1, request_2, request_3]
import io.milvus.v2.service.vector.request.AnnSearchReq;
import io.milvus.v2.service.vector.request.data.BaseVector;
import io.milvus.v2.service.vector.request.data.FloatVec;
import io.milvus.v2.service.vector.request.data.SparseFloatVec;
import io.milvus.v2.service.vector.request.data.EmbeddedText;
float[] queryDense = new float[]{-0.0475336798f, 0.0521207601f, 0.0904406682f, ...};
float[] queryMultimodal = new float[]{0.0158298651f, 0.5264158340f, ...}
List<BaseVector> queryTexts = Collections.singletonList(new EmbeddedText("white headphones, quiet and comfortable");)
List<BaseVector> queryDenseVectors = Collections.singletonList(new FloatVec(queryDense));
List<BaseVector> queryMultimodalVectors = Collections.singletonList(new FloatVec(queryMultimodal));
List<AnnSearchReq> searchRequests = new ArrayList<>();
searchRequests.add(AnnSearchReq.builder()
.vectorFieldName("text_dense")
.vectors(queryDenseVectors)
.params("{\"nprobe\": 10}")
.topK(2)
.build());
searchRequests.add(AnnSearchReq.builder()
.vectorFieldName("text_sparse")
.vectors(queryTexts)
.params("{\"drop_ratio_search\": 0.2}")
.topK(2)
.build());
searchRequests.add(AnnSearchReq.builder()
.vectorFieldName("image_dense")
.vectors(queryMultimodalVectors)
.params("{\"nprobe\": 10}")
.topK(2)
.build());
queryText := entity.Text({"white headphones, quiet and comfortable"})
queryVector := []float32{0.3580376395471989, -0.6023495712049978, 0.18414012509913835, ...}
queryMultimodalVector := []float32{0.015829865178701663, 0.5264158340734488, ...}
request1 := milvusclient.NewAnnRequest("text_dense", 2, entity.FloatVector(queryVector)).
WithAnnParam(index.NewIvfAnnParam(10))
annParam := index.NewSparseAnnParam()
annParam.WithDropRatio(0.2)
request2 := milvusclient.NewAnnRequest("text_sparse", 2, queryText).
WithAnnParam(annParam)
request3 := milvusclient.NewAnnRequest("image_dense", 2, entity.FloatVector(queryMultimodalVector)).
WithAnnParam(index.NewIvfAnnParam(10))
const query_text = "white headphones, quiet and comfortable"
const query_vector = [0.3580376395471989, -0.6023495712049978, 0.18414012509913835, ...]
const query_multimodal_vector = [0.015829865178701663, 0.5264158340734488, ...]
const search_param_1 = {
"data": query_vector,
"anns_field": "text_dense",
"param": {"nprobe": 10},
"limit": 2
}
const search_param_2 = {
"data": query_text,
"anns_field": "text_sparse",
"param": {"drop_ratio_search": 0.2},
"limit": 2
}
const search_param_3 = {
"data": query_multimodal_vector,
"anns_field": "image_dense",
"param": {"nprobe": 10},
"limit": 2
}
export req='[
{
"data": [[0.3580376395471989, -0.6023495712049978, 0.18414012509913835, ...]],
"annsField": "text_dense",
"params": {"nprobe": 10},
"limit": 2
},
{
"data": ["white headphones, quiet and comfortable"],
"annsField": "text_sparse",
"params": {"drop_ratio_search": 0.2},
"limit": 2
},
{
"data": [[0.015829865178701663, 0.5264158340734488, ...]],
"annsField": "image_dense",
"params": {"nprobe": 10},
"limit": 2
}
]'
Given that the parameter limit
is set to 2, each AnnSearchRequest
returns 2 search results. In this example, 3 AnnSearchRequest
instances are created, resulting in a total of 6 search results.
Configure a reranking strategy
To merge and rerank the sets of ANN search results, selecting an appropriate reranking strategy is essential. Zilliz Cloud offers two types of reranking strategies:
-
WeightedRanker: Use this strategy if the results need to emphasize a particular vector field. WeightedRanker allows you to assign greater weight to certain vector fields, highlighting them more prominently.
-
RRFRanker (Reciprocal Rank Fusion Ranker): Choose this strategy when no specific emphasis is required. RRFRanker effectively balances the importance of each vector field.
For more details on these reranking mechanisms, please refer to Reranking.
In this example, since there is no particular emphasis on specific search queries, we will proceed with the RRFRanker strategy.
- Python
- Java
- Go
- NodeJS
- cURL
from pymilvus import RRFRanker
ranker = RRFRanker(100)
import io.milvus.v2.service.vector.request.ranker.BaseRanker;
import io.milvus.v2.service.vector.request.ranker.RRFRanker;
BaseRanker reranker = new RRFRanker(100);
reranker := milvusclient.NewRRFReranker().WithK(100)
import { MilvusClient, DataType } from "@zilliz/milvus2-sdk-node";
const rerank = RRFRanker("100");
export rerank='{
"strategy": "rrf",
"params": { "k": 100}
}'
Perform a Hybrid Search
Before initiating a Hybrid Search, ensure that the collection is loaded. If any vector fields within the collection lack an index or are not loaded into memory, an error will occur upon executing the Hybrid Search method.
- Python
- Java
- Go
- NodeJS
- cURL
from pymilvus import MilvusClient
res = client.hybrid_search(
collection_name="my_collection",
reqs=reqs,
ranker=ranker,
limit=2
)
for hits in res:
print("TopK results:")
for hit in hits:
print(hit)
import io.milvus.v2.common.ConsistencyLevel;
import io.milvus.v2.service.vector.request.HybridSearchReq;
import io.milvus.v2.service.vector.response.SearchResp;
HybridSearchReq hybridSearchReq = HybridSearchReq.builder()
.collectionName("my_collection")
.searchRequests(searchRequests)
.ranker(reranker)
.topK(2)
.build();
SearchResp searchResp = client.hybridSearch(hybridSearchReq);
resultSets, err := client.HybridSearch(ctx, milvusclient.NewHybridSearchOption(
"my_collection",
2,
request1,
request2,
request3,
).WithReranker(reranker))
if err != nil {
fmt.Println(err.Error())
// handle error
}
for _, resultSet := range resultSets {
fmt.Println("IDs: ", resultSet.IDs.FieldData().GetScalars())
fmt.Println("Scores: ", resultSet.Scores)
}
const { MilvusClient, DataType } = require("@zilliz/milvus2-sdk-node")
res = await client.loadCollection({
collection_name: "my_collection"
})
import { MilvusClient, RRFRanker, WeightedRanker } from '@zilliz/milvus2-sdk-node';
const search = await client.search({
collection_name: "my_collection",
data: [search_param_1, search_param_2, search_param_3],
limit: 2,
rerank: rerank
});
curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/entities/advanced_search" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d "{
\"collectionName\": \"my_collection\",
\"search\": ${req},
\"rerank\": {
\"strategy\":\"rrf\",
\"params\": ${rerank}
},
\"limit\": 2
}"
The following is the output:
["['id: 1, distance: 0.006047376897186041, entity: {}', 'id: 2, distance: 0.006422005593776703, entity: {}']"]
With the limit=2
parameter specified for the Hybrid Search, Zilliz Cloud will rerank the six results obtained from the three searches. Ultimately, they will return only the top two most similar results.
