Set up a PrivateLink (AWS)

This guide demonstrates the procedure for setting up a private link from a Zilliz Cloud cluster to your service hosted in different AWS VPCs.

This feature is exclusively available to Dedicated (Enterprise) clusters.

A private link is set up at the project level and is effective for all clusters deployed within the same cloud provider and region under this project.

📘Notes

Zilliz Cloud does not charge you for creating and using private endpoints. However, your cloud provider may charge you for each endpoint that you create to access Zilliz Cloud.

Before you start​

Make sure the following condition is met:

  • A Dedicated (Enterprise) cluster has been created. For information on how to create a cluster, see Create Cluster.

Create private endpoint​

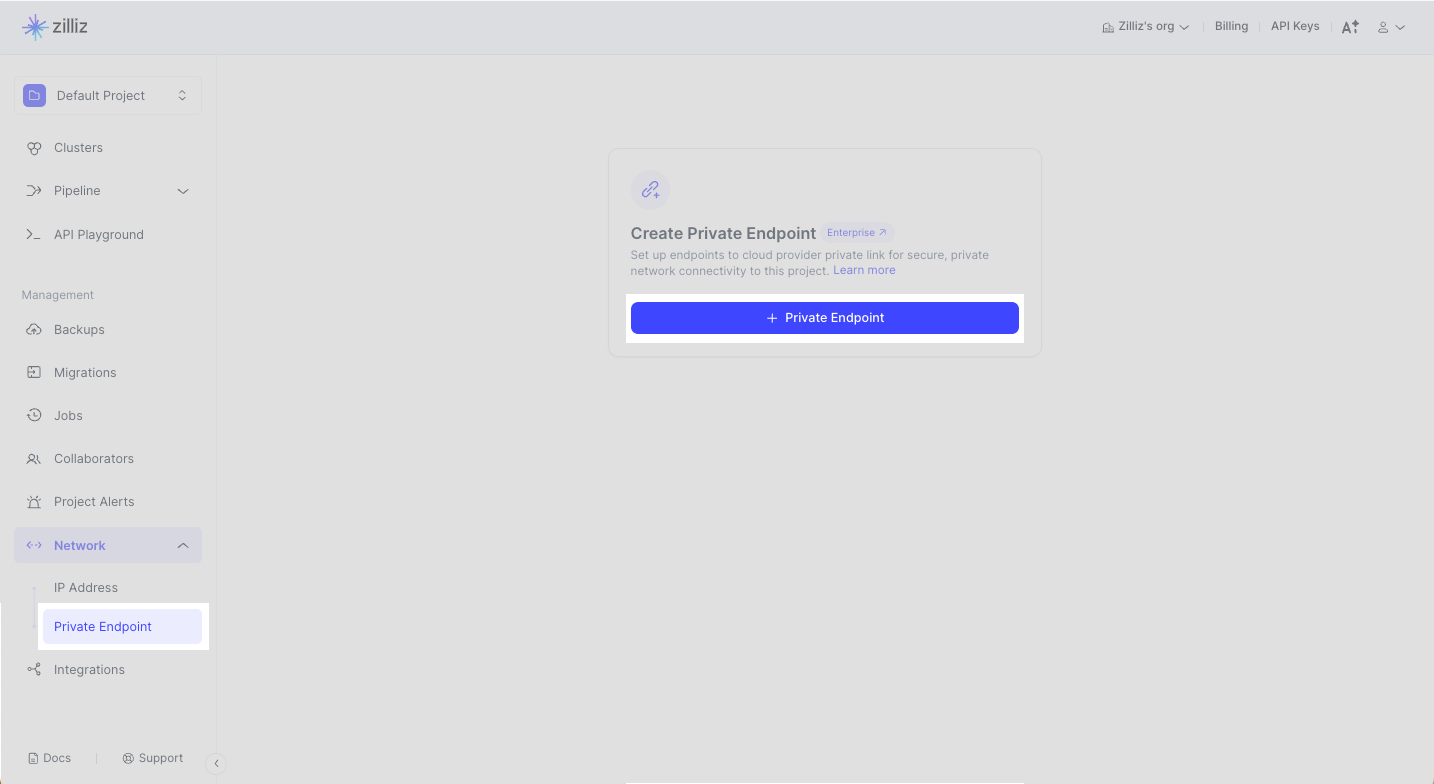

Zilliz Cloud offers you an intuitive web console to add a private endpoint. Navigate to your target project and click Network > Private Endpoint in the left navigation. Click + Private Endpoint.

setup_private_link_aws_01

Select a cloud provider and region​

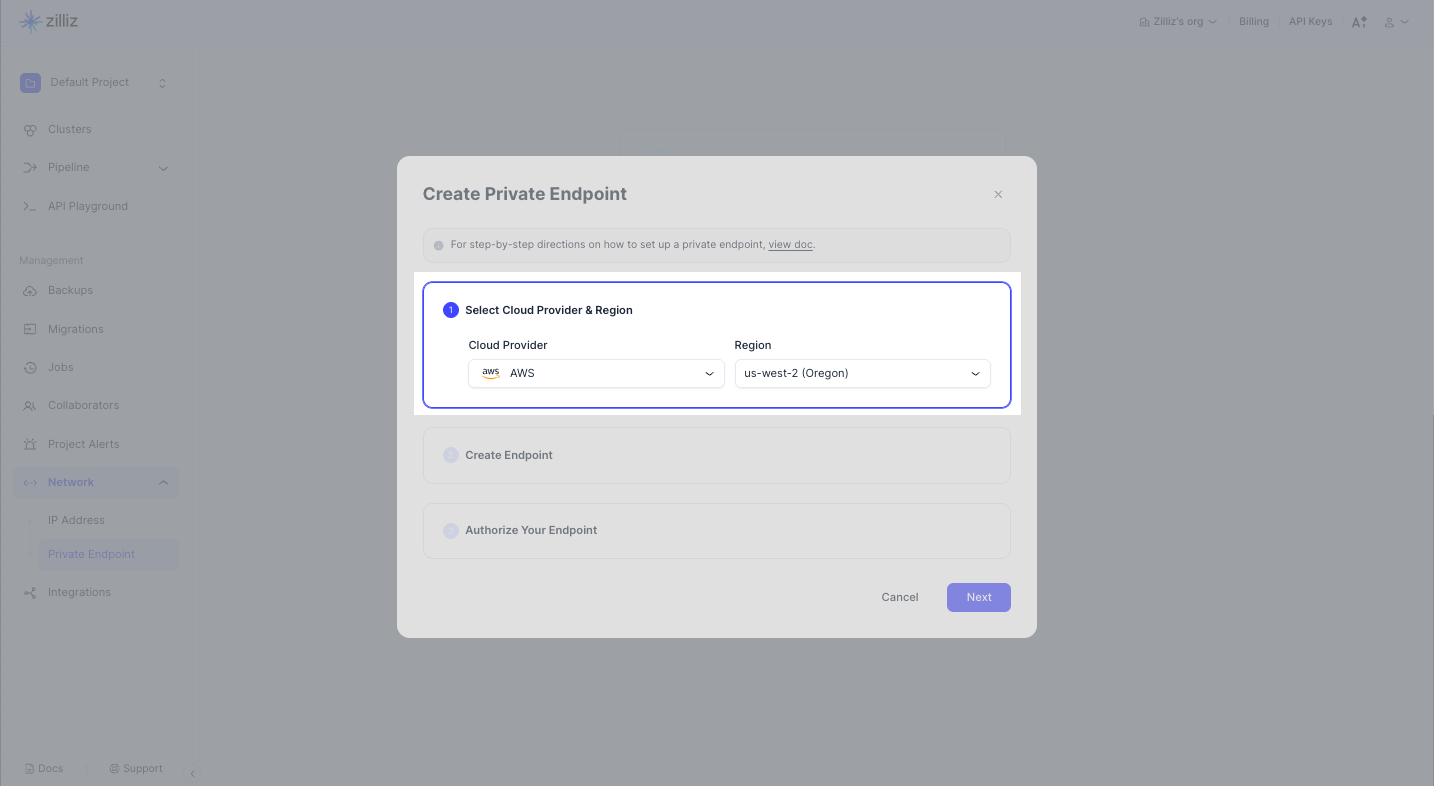

To create a private endpoint for a cluster deployed in an AWS region, select AWS from the Cloud Provider drop-down list. In Region, select the region that accommodates the cluster you want to access privately. Click Next.

For more information on available cloud providers and regions, see Cloud Providers & Regions.

setup_private_link_window

Create an Endpoint​

You need to complete this step on your cloud provider console using either the UI console or CLI.

  • Via UI console

    1. Switch to the Via UI Console tab.

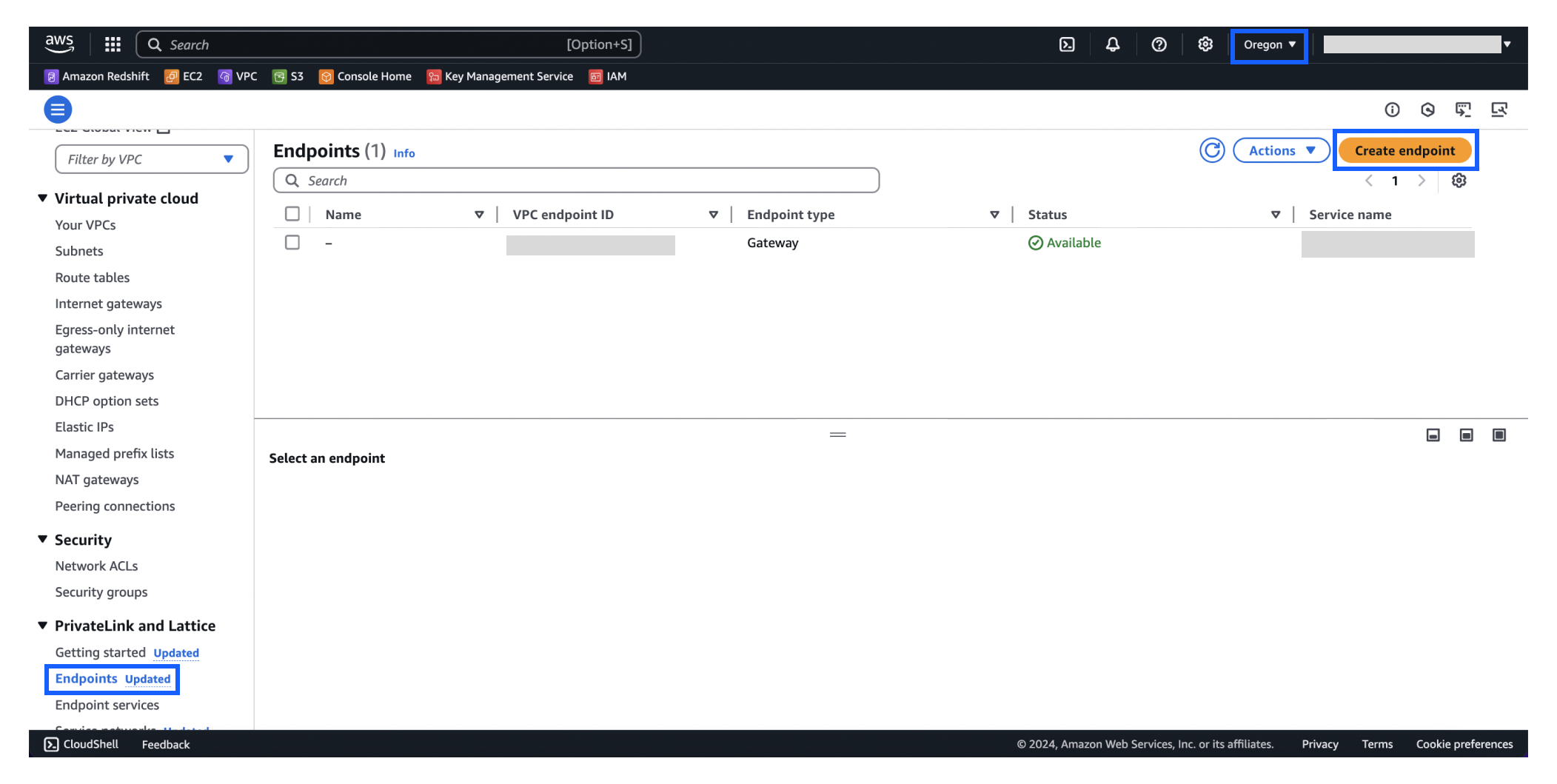

    2. Navigate to the AWS console page.On the AWS console, check the if the cloud region corresponds to the cloud region you selected in Step 1. Click Endpoints in the left navigation. Click Create Endpoint.

      setup_private_link_window_gcp

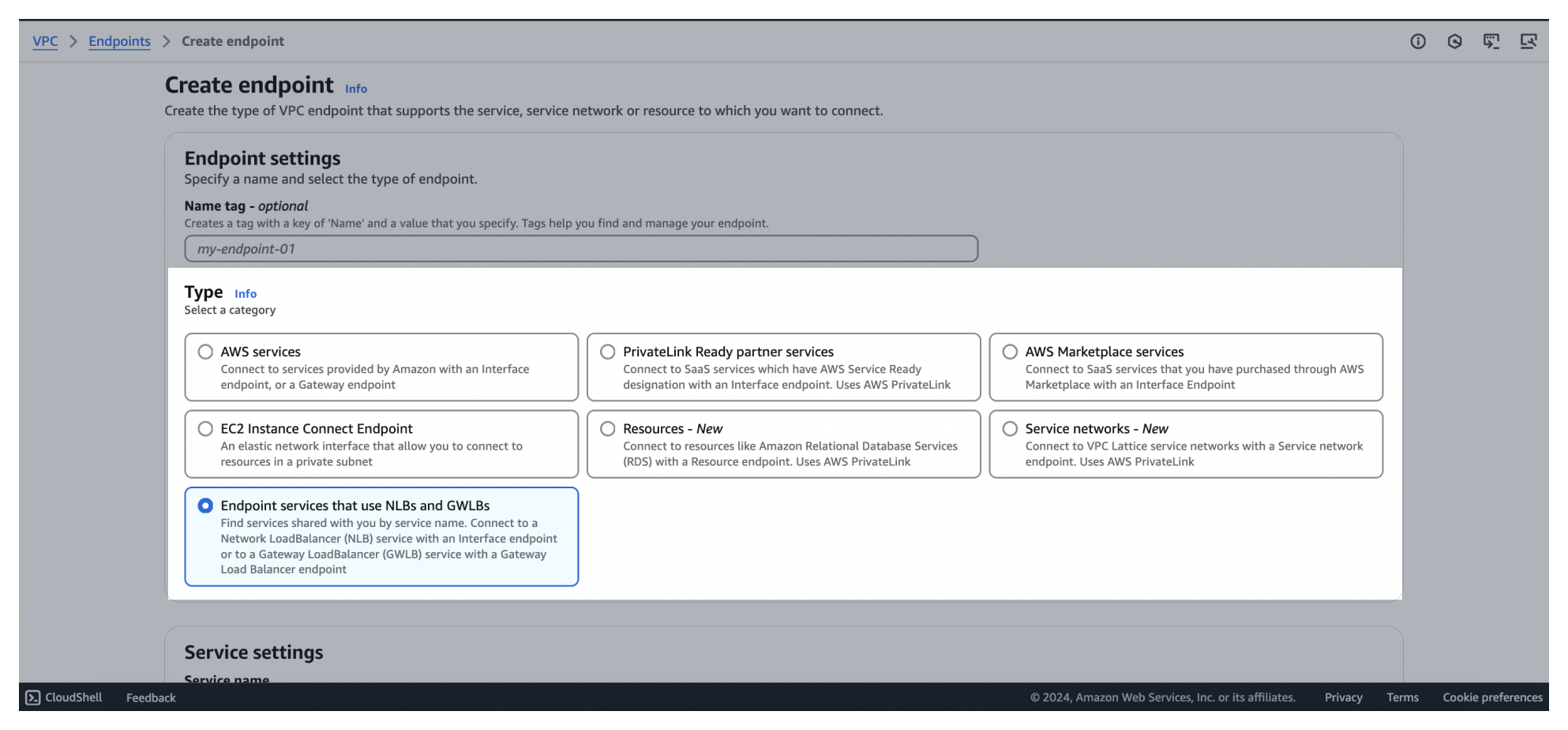

    3. On the Create Endpoint page, select Endpoint services that use NLBs and GWLBs as the endpoint Type.

      create_endpoint_type_gcp

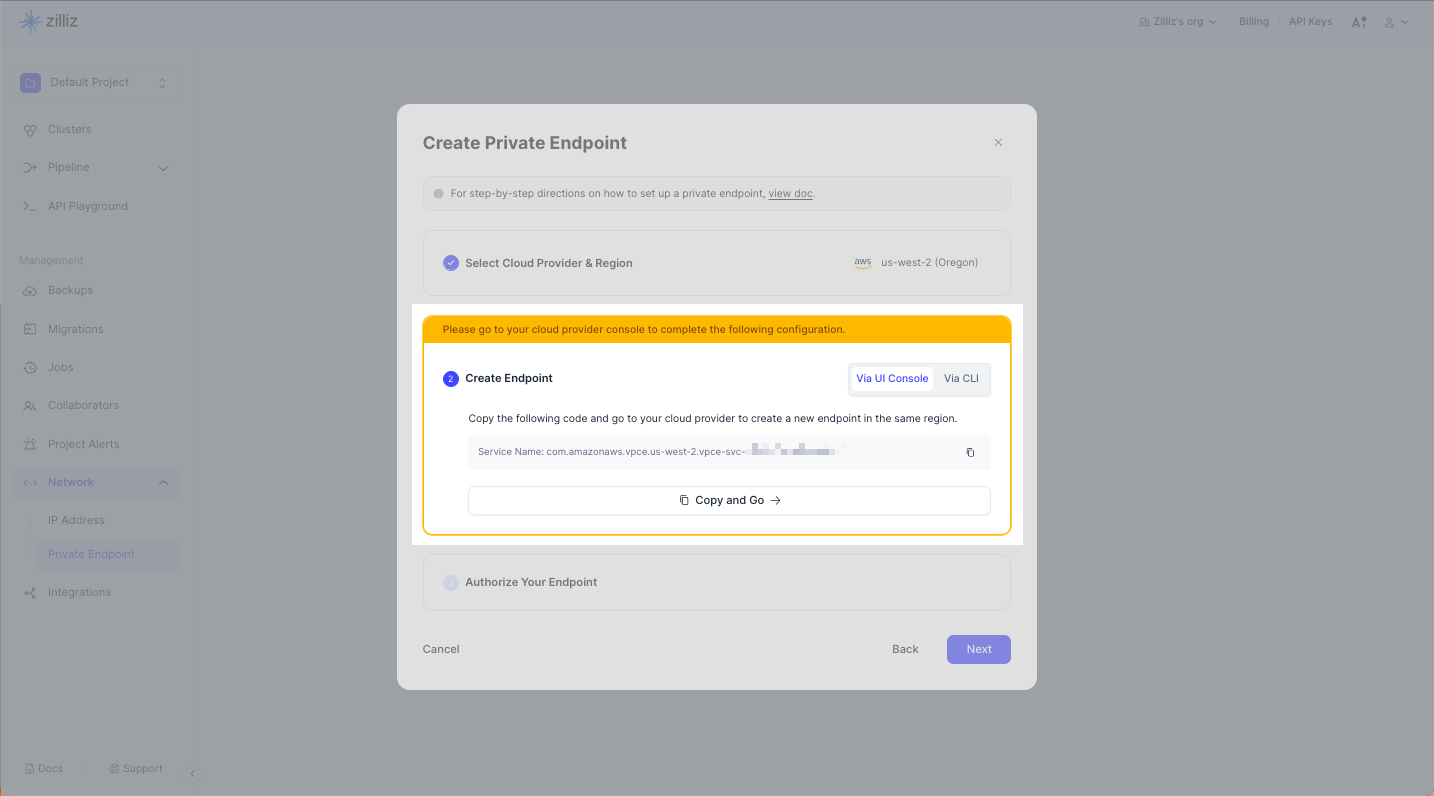

    4. Switch back to the Zilliz Cloud console, copy the Service Name.

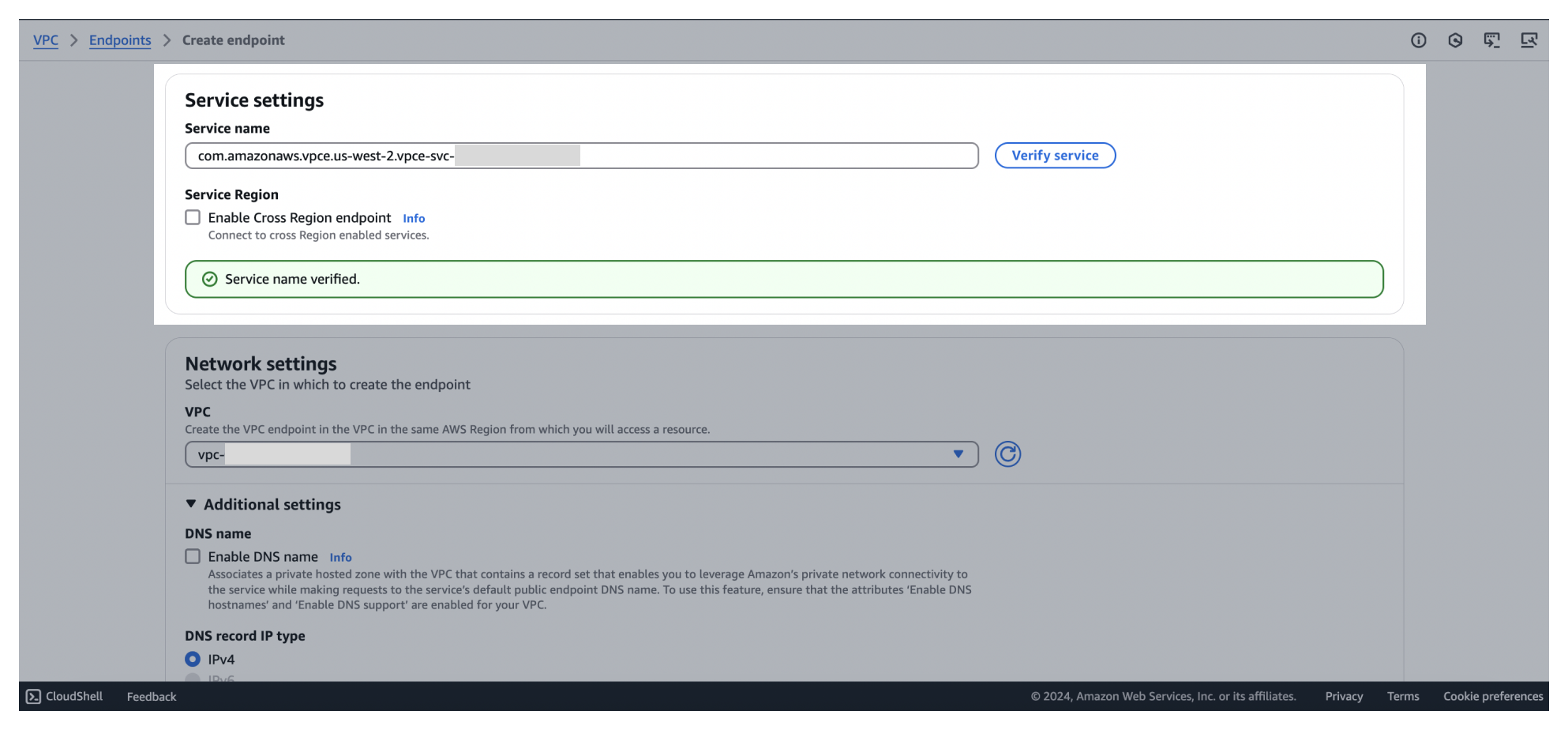

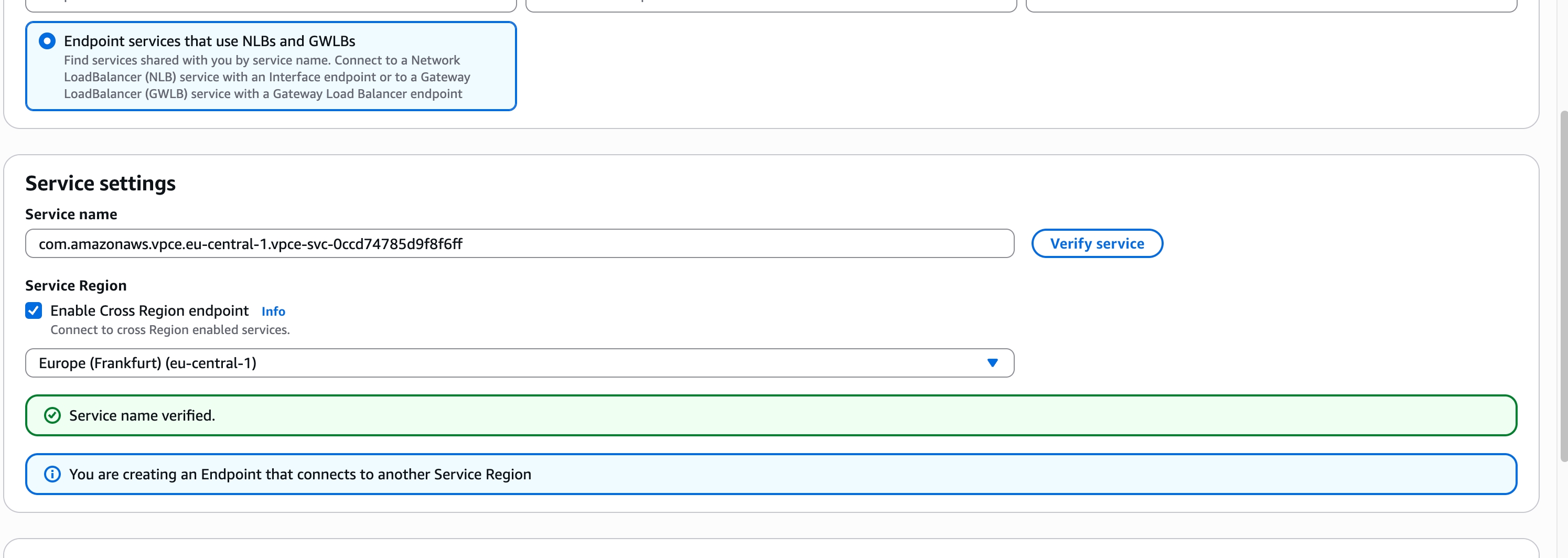

    5. Switch to the AWS console. In Service Settings, paste the Service Name you copied from the Zilliz Cloud web console into the Service Name field. Then click Verify service.

      enter_service_name_gcp

    6. When the service name is verified, complete network settings, subnet, security groups, and click Create.

    7. When the endpoint is successfully created, copy the Endpoint ID (starting with "vpce-").

  • Via CLI

    setup_private_link_aws_via_CLI

    1. Switch to the Via CLI tab.

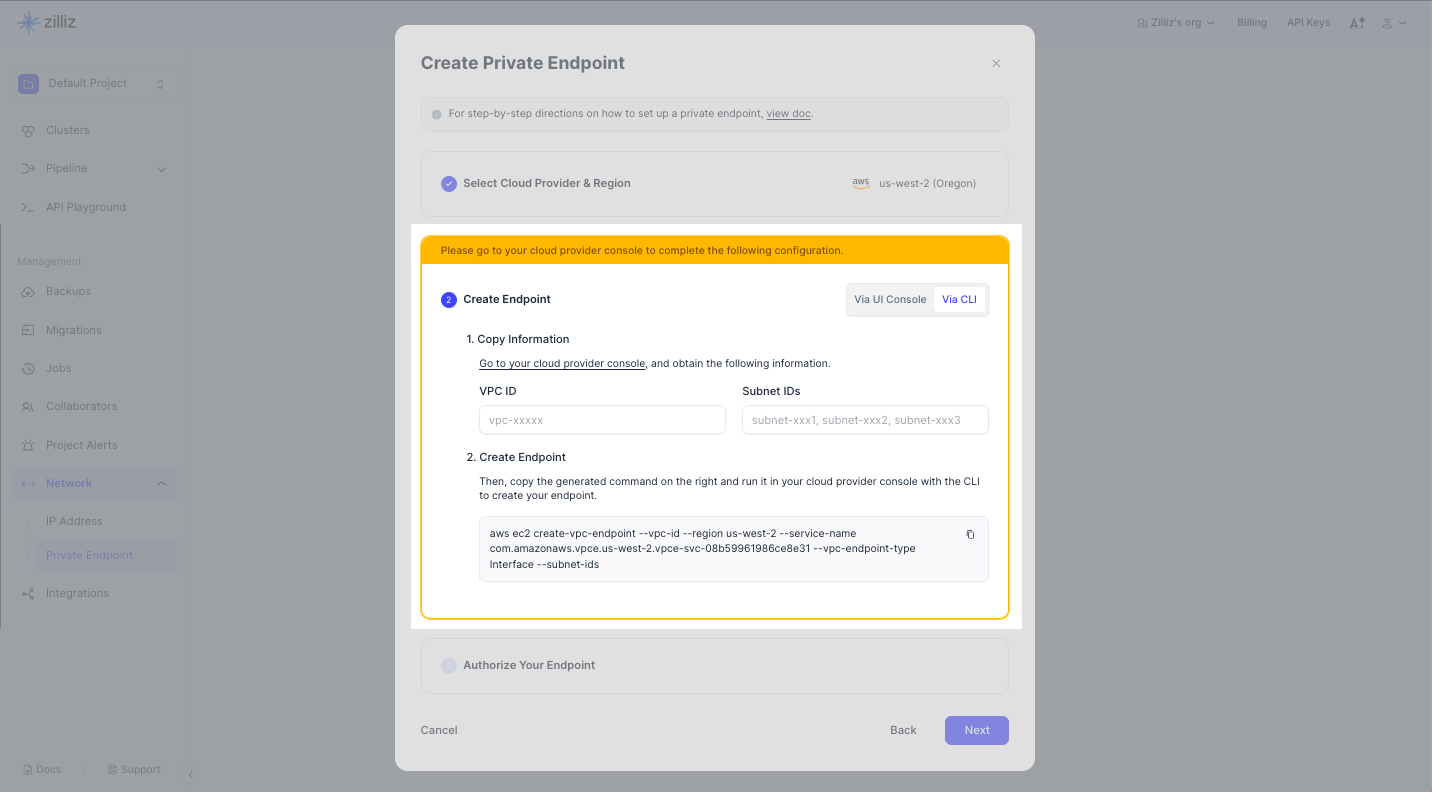

    2. Enter the VPC ID.

      To view your VPCs, navigate to the Amazon VPC console. In the navigation pane, choose Your VPCs. Find the VPC of your desire and copy its ID. Enter this ID in VPC ID on Zilliz Cloud.

      To create a VPC, see Create a VPC.

    3. Enter the Subnet IDs.

      Subnets are sub-divisions of your VPC. You need to have a subnet that resides in the same region as the private endpoint to be created. To view your subnets, navigate to the Amazon VPC console. Change the current region to the one specified for creating the private link. In the navigation pane, choose Subnets. Find the subnet of your desire and copy its ID. Enter this ID in Subnet IDs on Zilliz Cloud.

      To create a subnet, see Create a Subnet in Your VPC.

    4. Click Copy and Go.

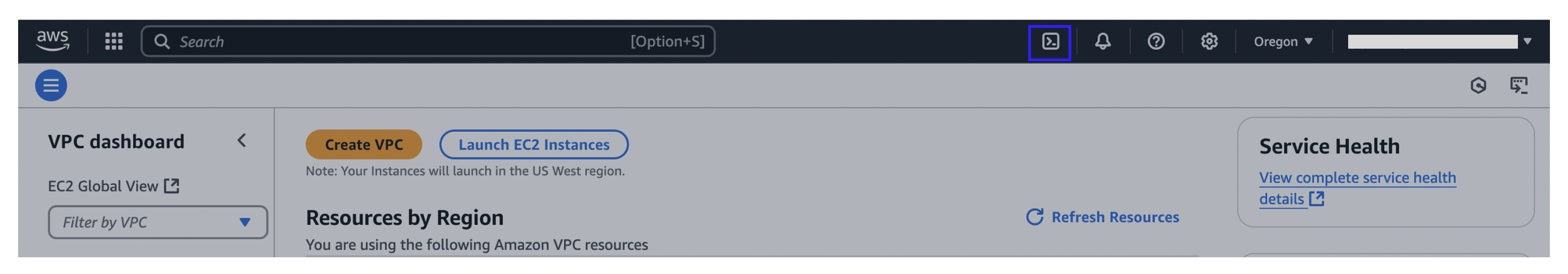

      You will be redirected to your cloud provider console. In the top navigation, launch the AWS CloudShell. Run the CLI command you just copied from Zilliz Cloud in the CloudShell.

      setup_private_link_aws_cloud_shell

      The returned message is similar to the following:

      {
          "VpcEndpoint": {
              # Copy this and fill it in "Your VPC Private Link ID"
              "VpcEndpointId": "vpce-0ce90d01341533a5c",
              "VpcEndpointType": "Interface",
              ...
              "DnsEntries": [
                  {
                      # Copy this one and use it as "VPCE_DNS" in the next step.
                      "DnsName": "vpce-0ce90d01341533a5c-ngbqfdnj.vpce-svc-0b62964bfd0edfb74.us-west-2.vpce.amazonaws.com",
                      "HostedZoneId": "Z1YSA3EXCYUU9Z"
                  },
                  {
                      "DnsName": "vpce-0ce90d01341533a5c-ngbqfdnj-us-west-2a.vpce-svc-0b62964bfd0edfb74.us-west-2.vpce.amazonaws.com",
                      "HostedZoneId": "Z1YSA3EXCYUU9Z"
                  }
              ]
      }

      In the returned message, copy the VpcEndpointId (starting with "vpce-") of the created VPC endpoint.

Authorize your endpoint​

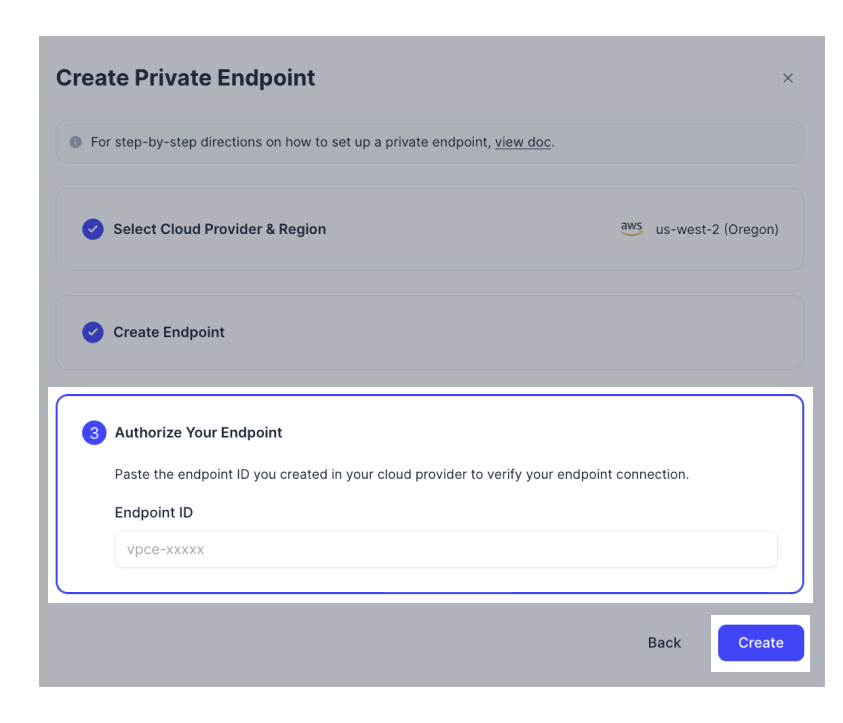

Paste the endpoint ID you obtained from the AWS console into the Endpoint ID box on Zilliz Cloud. Click Create.

setup_private_link_aws_authorize_endpoint

After verifying and accepting the VPC endpoint you have submitted, Zilliz Cloud allocates a private link for this endpoint. This process takes about 5 minutes.

When the private link is ready, you can view it on the Private Link page on Zilliz Cloud.

Set up a DNS record​

Before you can access your cluster via the private link allocated by Zilliz Cloud, it is necessary to create a CNAME record in your DNS zone to resolve the private link to the DNS name of your VPC endpoint.

  • Create a hosted zone using Amazon Route 53

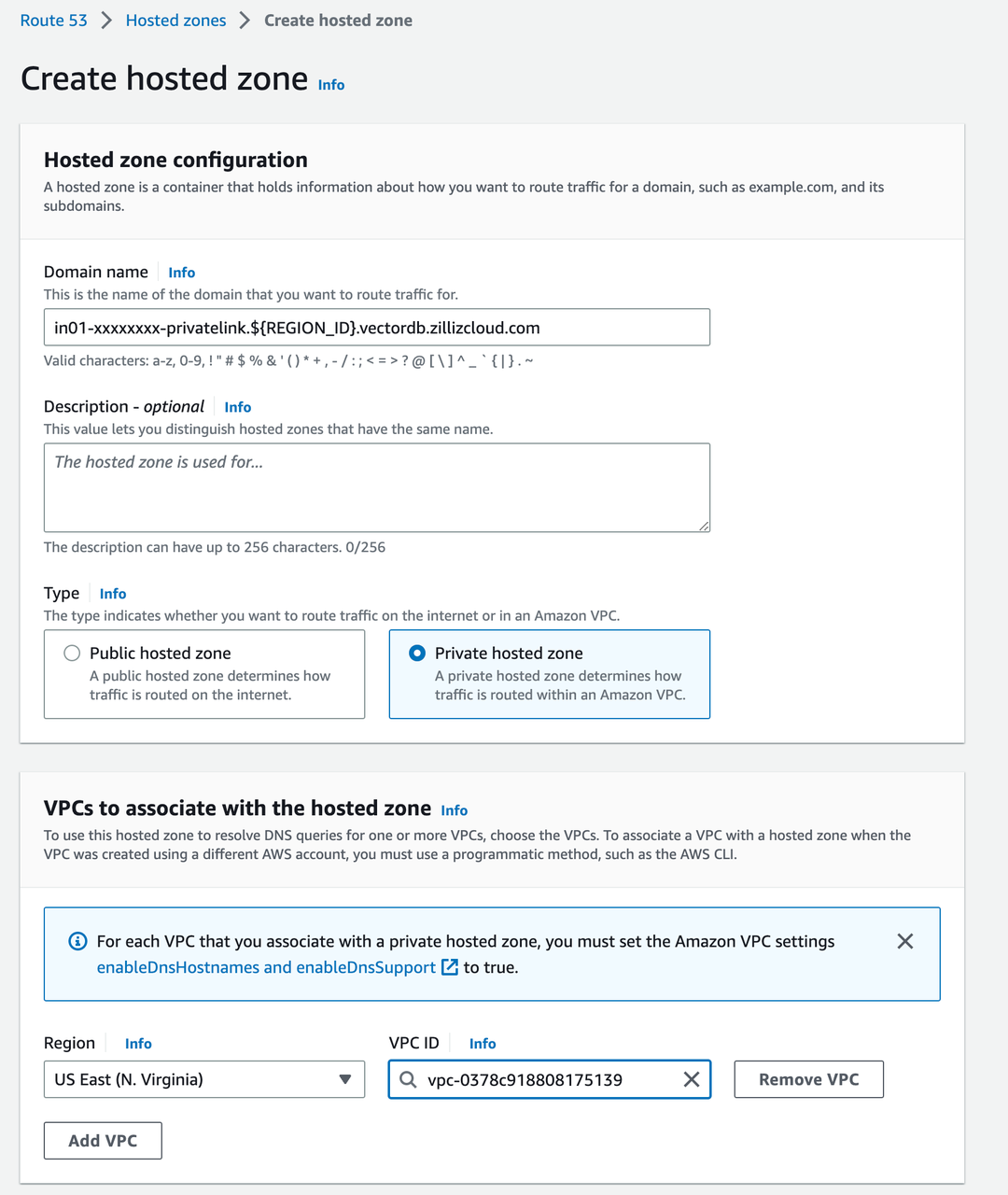

    Amazon Route 53 is a web-based DNS service. Create a hosted DNS zone so that you can add DNS records to it.

    A1zxblLRPo96Kvx0zzccZ485nGb

    1. Log into your AWS account and go to Hosted zones.

    2. Click Create hosted zone.

    3. In the Hosted zone configuration section, set the following parameters.

      Parameter name

      Parameter Description

      Domain name

      Private Link allocated by Zilliz Cloud for the target cluster.

      Description

      Description used to distinguish hosted zones.

      Type

      Select Private hosted zone.

    4. In the VPCs to associate with the hosted zone section, add your VPC ID to associate it with the hosted zone.

  • Create an alias record in the hosted zone

    An alias record is a type of DNS record that maps an alias name to a true or canonical domain name. Create an alias record to map the private link allocated by Zilliz Cloud to the DNS name of your VPC endpoint. Then, you can use the private link to access your cluster privately.

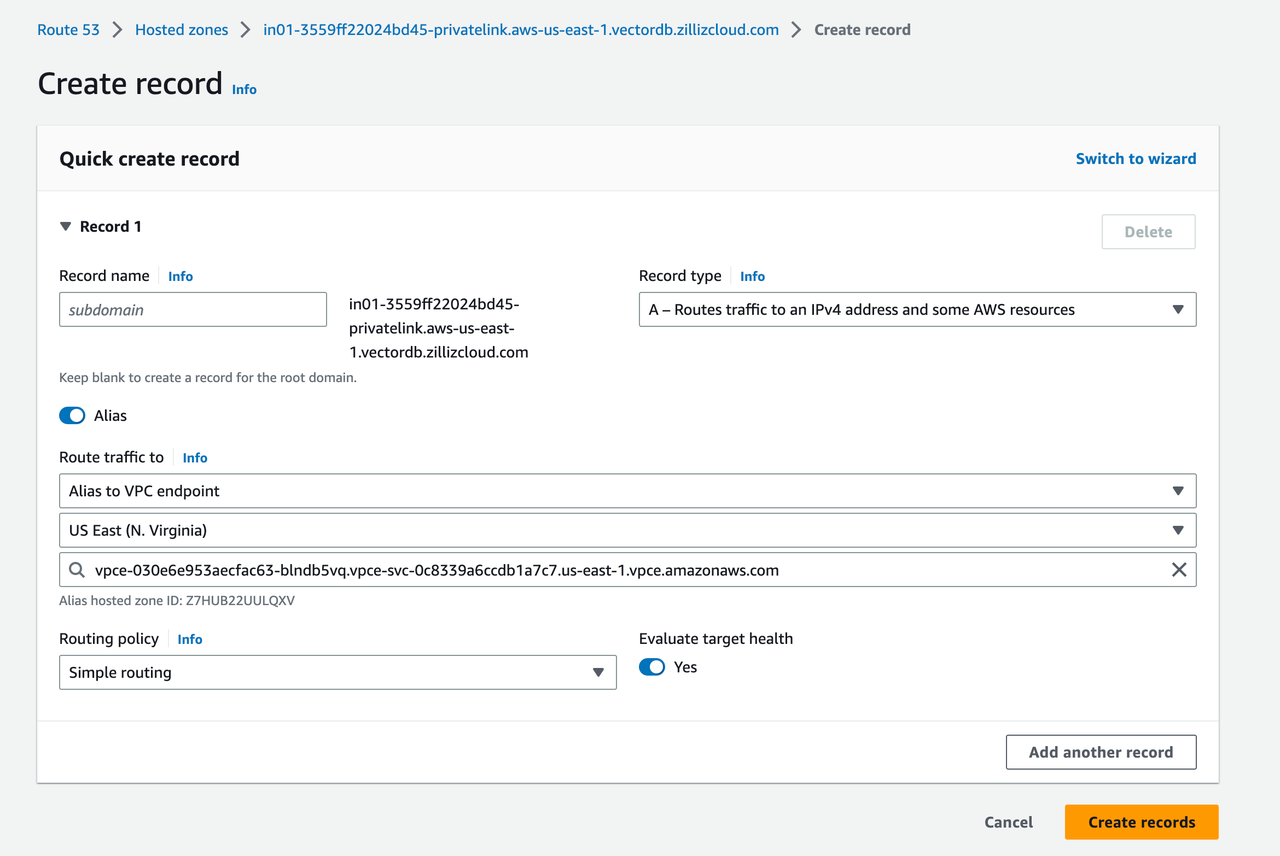

    VoCsbJtTDo1glVx0vtGcqWPRnEd

    1. In the created hosted zone, click Create record.

    2. On the Create record page, switch on Alias, and select Route traffic to as follows:

      1. Select Alias to VPC endpoint in the first drop-down list.

      2. Select the cloud region in the second drop-down list.

      3. Enter the name of the endpoint that has been created above.

    3. Click Create records.

Manage internet access to your clusters​

After configuring your private endpoint, you can choose to disable the cluster public endpoints to restrict internet access to your project. Once you have disabled the public endpoint, users can only connect to the cluster using the private link.

To disable public endpoints:

  1. Go to the Cluster Details page of your target cluster.

  2. Navigate to the Connect section.

  3. Click on the configurations icon next to the cluster public endpoint.

  4. Read the information and click Disable in the Disable Public Endpoint dialog box.

📘Notes

  • Private endpoints only impact data plane access. Control plane can still be accessed over the public internet.

  • After you re-enable the public endpoint, you may need to wait until the local DNS cache to expire before you can access the public endpoint.

disable_public_endpoint

Troubleshooting​

A timeout usually occurs for the following reasons:

  • No private DNS records exist.

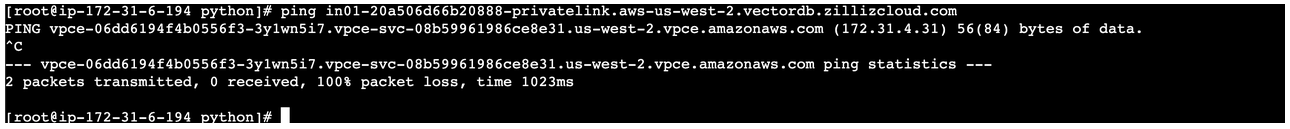

    If a DNS record exists, you can ping the private link as follows:

    QOanbDGrYovMXHxczXmcCbUcnsc

    📘Notes

    If the IP address of the VPC endpoint has been resolved correctly in the output of the ping request, the DNS record works.

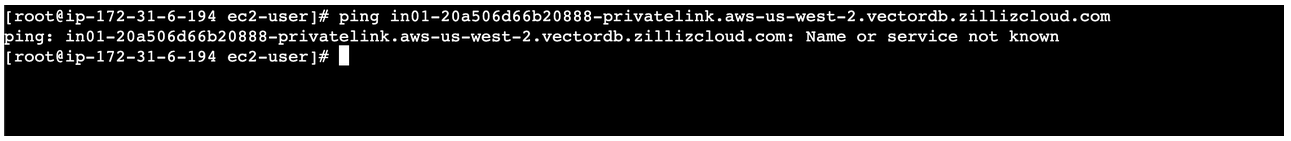

    If you see the following, you need to set up the DNS record.

    X5ahblpw1oRxp8xKR3OczuD9nFf

  • No or invalid security group rules exist.

    You need to properly set the security group rules for the traffic from your EC2 instance to your VPC endpoint in the AWS console. A proper security group within your VPC should allow inbound access from your EC2 instances on the port suffixed to your private link.

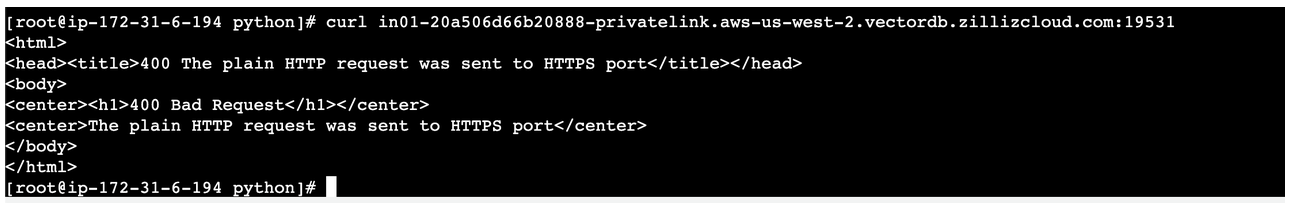

    You can use a curl command to test the connectivity of the private link. In a normal case, it returns a 400 response.

    ERtlbR2v7oA3Q4xXRlccM3VhnNc

    If the curl command hangs without any response as in the following screenshot, you need to set up proper security group rules by referring to step 9 in Create a VPC endpoint.

    KHj0bEy7ZojM6axnR0ocg1LPnue

    📘Notes

    Two security groups must be configured: one for the EC2 instance, which must allow traffic on the port associated with your private link, and another for the VPC endpoint, which must permit traffic from the IP address of the EC2 instance and target the specified port number.
