RRF Ranker

Reciprocal Rank Fusion (RRF) Ranker is a reranking strategy for Milvus hybrid search that balances results from multiple vector search paths based on their ranking positions rather than their raw similarity scores. Like a sports tournament that considers players' rankings rather than individual statistics, RRF Ranker combines search results based on how highly each item ranks in different search paths, creating a fair and balanced final ranking.

When to use RRF Ranker

RRF Ranker is specifically designed for hybrid search scenarios where you want to balance results from multiple vector search paths without assigning explicit importance weights. It's particularly effective for:

Use Case	Example	Why RRF Ranker Works Well
Multimodal search with equal importance	Image-text search where both modalities matter equally	Balances results without requiring arbitrary weight assignments
Ensemble vector search	Combining results from different embedding models	Democratically merges rankings without favoring any particular model's scoring distribution
Cross-lingual search	Finding documents across multiple languages	Ranks results fairly regardless of language-specific embedding characteristics
Expert recommendations	Combining recommendations from multiple expert systems	Creates consensus rankings when different systems use incomparable scoring methods

If your hybrid search application requires balancing multiple search paths democratically without assigning explicit weights, RRF Ranker is your ideal choice.

Mechanism of RRF Ranker

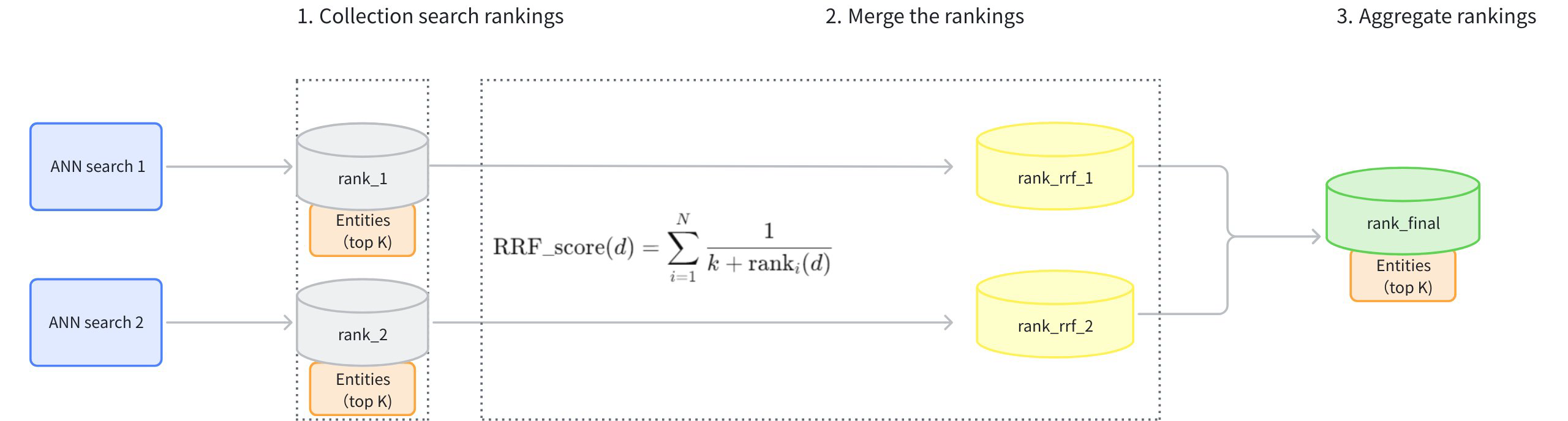

The main workflow of the RRFRanker strategy is as follows:

Collect Search Rankings: Collect the rankings of results from each path of vector search (rank_1, rank_2).
Merge Rankings: Convert the rankings from each path (rank_rrf_1, rank_rrf_2) according to a formula .

The calculation formula involves N, which represents the number of retrievals. ranki(d) is the ranking position of document d generated by the i(th) retriever. k is a smoothing parameter typically set at 60.
Aggregate Rankings: Re-rank the search results based on the combined rankings to produce the final results.

M2SawupkSh2NZxbX7SAcwqZZnxd

Example of RRF Ranker

This example demonstrates a Hybrid Search (topK=5) on sparse-dense vectors and illustrates how the RRFRanker strategy reranks the results from two ANN searches.

Results of ANN search on sparse vectors of texts （topK=5)：

ID	Rank (sparse)
101	1
203	2
150	3
198	4
175	5

Results of ANN search on dense vectors of texts （topK=5)：

ID	Rank (dense)
198	1
101	2
110	3
175	4
250	5

Use RRF to rearrange the rankings of the two sets of search results. Assume that the smoothing parameter k is set at 60.

ID	Score (Sparse)	Score (Dense)	Final Score
101	1	2	1/(60+1)+1/(60+2) = 0.01639
198	4	1	1/(60+4)+1/(60+1) = 0.01593
175	5	4	1/(60+5)+1/(60+4) = 0.01554
203	2	N/A	1/(60+2) = 0.01613
150	3	N/A	1/(60+3) = 0.01587
110	N/A	3	1/(60+3) = 0.01587
250	N/A	5	1/(60+5) = 0.01554

The final results after reranking（topK=5)：

Rank	ID	Final Score
1	101	0.01639
2	203	0.01613
3	198	0.01593
4	150	0.01587
5	110	0.01587

Usage of RRF Ranker

When using the RRF reranking strategy, you need to configure the parameter k. It is a smoothing parameter that can effectively alter the relative weights of full-text search versus vector search. The default value of this parameter is 60, and it can be adjusted within a range of (0, 16384). The value should be floating-point numbers. The recommended value is between [10, 100]. While k=60 is a common choice, the optimal k value can vary depending on your specific applications and datasets. We recommend testing and adjusting this parameter based on your specific use case to achieve the best performance.

Create an RRF Ranker

After your collection is set up with multiple vector fields, create an RRF Ranker with an appropriate smoothing parameter:

Python
Java
Go
NodeJS
cURL

from pymilvus import RRFRanker

ranker = RRFRanker(100)

import io.milvus.v2.service.vector.request.ranker.RRFRanker;

RRFRanker ranker = new RRFRanker(100);

ranker := milvusclient.NewRRFReranker().WithK(100)

ranker: RRFRanker("100")

"ranker": {
    "strategy": "rrf",
    "params": {
        "k": 100
    }
}
export ranker='{
        "strategy": "rrf",
        "params": {"k": 100}
    }'

Apply to hybrid search

RRF Ranker is designed specifically for hybrid search operations that combine multiple vector fields. Here's how to use it in a hybrid search:

Python
Java
NodeJS
Go
cURL

# Python
from pymilvus import AnnSearchRequest

# Define text vector search request
text_search = AnnSearchRequest(
    data=["modern dining table"],
    anns_field="text_vector",
    param={},
    limit=10
)

# Define image vector search request
image_search = AnnSearchRequest(
    data=[image_embedding],  # Image embedding vector
    anns_field="image_vector",
    param={},
    limit=10
)

# Apply RRF Ranker to product hybrid search
# The smoothing parameter k controls the balance
hybrid_results = milvus_client.hybrid_search(
    collection_name,
    [text_search, image_search],  # Multiple search requests
    ranker=ranker,  # Apply the RRF ranker
    limit=10,
    output_fields=["product_name", "price", "category"]
)

// java

// nodejs

// go

# restful

For more information on hybrid search, refer to Multi-Vector Hybrid Search.
