Sparse Vector
Sparse vectors are an important method of data representation in information retrieval and natural language processing. While dense vectors are popular for their excellent semantic understanding capabilities, sparse vectors often provide more accurate results when it comes to applications that require precise matching of keywords or phrases.
Overview

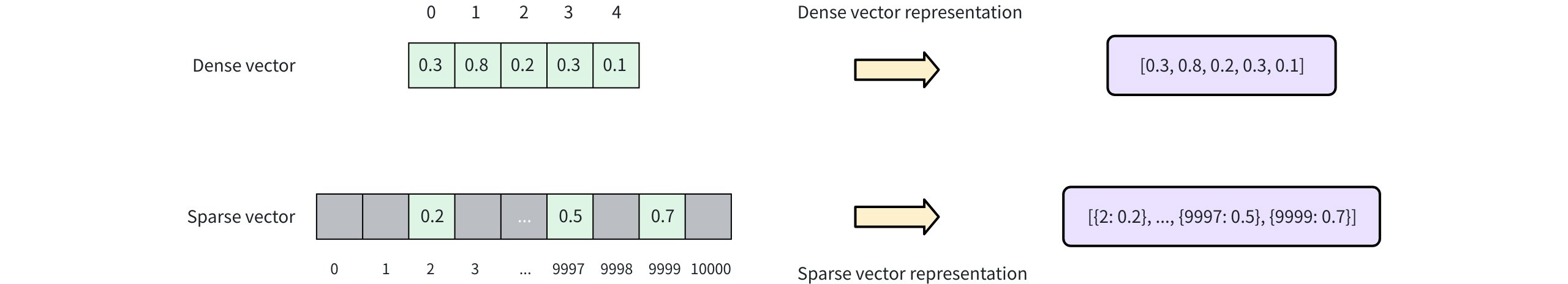

A sparse vector is a special representation of high-dimensional vectors where most elements are zero, and only a few dimensions have non-zero values. As shown in the diagram below, dense vectors are typically represented as continuous arrays where each position has a value (e.g., [0.3, 0.8, 0.2, 0.3, 0.1]
). In contrast, sparse vectors store only non-zero elements and their indices, often represented as key-value pairs (e.g., [{2: 0.2}, ..., {9997: 0.5}, {9999: 0.7}]
).
Sparse vectors reduce storage and boost efficiency in high-dimensional data, making them ideal for large & sparse datasets. Common use cases include:
-
Text analysis: Representing documents as bag-of-words vectors, where each dimension corresponds to a word in the vocabulary, and only words present in the document have non-zero values.
-
Recommendation systems: User-item interaction matrices, where each dimension represents a user’s rating for a particular item, with most users interacting with only a few items.
-
Image processing: Local feature representation, focusing only on key points in the image, resulting in high-dimensional sparse vectors.

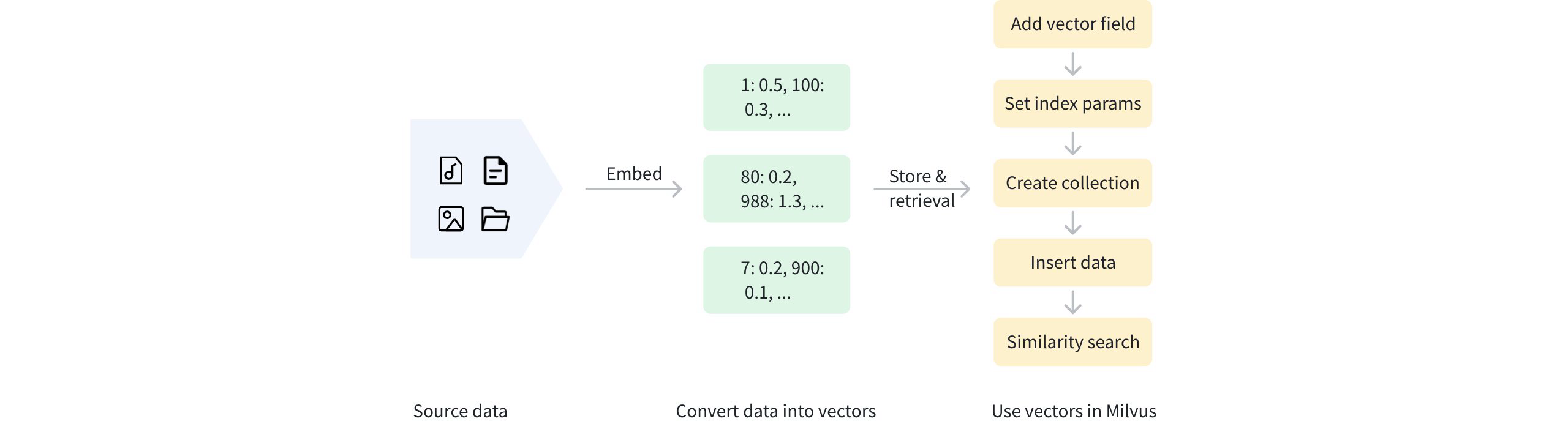

Sparse vectors are commonly generated through traditional statistical methods like TF-IDF and BM25, or via neural models that learn sparse representations from text. Zilliz Cloud supports full-text search for text data using the BM25 algorithm. It automatically converts text into sparse embeddings — no manual vectorization required. Refer to Full Text Search for more information.
Once vectorized, the data can be stored in Zilliz Cloud for efficient management and retrieval. The diagram below illustrates the overall process.
In addition to sparse vectors, Zilliz Cloud also supports dense vectors and binary vectors. Dense vectors are ideal for capturing deep semantic relationships, while binary vectors excel in scenarios like quick similarity comparisons and content deduplication. For more information, refer to Dense Vector and Binary Vector.
Data Formats
Zilliz Cloud supports representing sparse vectors in any of the following formats:
-
Sparse Matrix (using the
scipy.sparse
class)from scipy.sparse import csr_matrix
# Create a sparse matrix
row = [0, 0, 1, 2, 2, 2]
col = [0, 2, 2, 0, 1, 2]
data = [1, 2, 3, 4, 5, 6]
sparse_matrix = csr_matrix((data, (row, col)), shape=(3, 3))
# Represent sparse vector using the sparse matrix
sparse_vector = sparse_matrix.getrow(0) -
List of Dictionaries (formatted as
{dimension_index: value, ...}
)- Python
- Java
# Represent sparse vector using a dictionary
sparse_vector = [{1: 0.5, 100: 0.3, 500: 0.8, 1024: 0.2, 5000: 0.6}]SortedMap<Long, Float> sparseVector = new TreeMap<>();
sparseVector.put(1L, 0.5f);
sparseVector.put(100L, 0.3f);
sparseVector.put(500L, 0.8f);
sparseVector.put(1024L, 0.2f);
sparseVector.put(5000L, 0.6f); -
List of Tuple Iterators (formatted as
[(dimension_index, value)]
)# Represent sparse vector using a list of tuples
sparse_vector = [[(1, 0.5), (100, 0.3), (500, 0.8), (1024, 0.2), (5000, 0.6)]]
Define Collection Schema
Before creating a collection, you need to define the collection schema, which includes fields and derivative functions that convert text fields into corresponding sparse vector representations.
Add fields
To use sparse vectors in Zilliz Cloud clusters, you need to create a collection with a schema including at least the following fields:
-
A
SPARSE_FLOAT_VECTOR
field reserved for storing sparse embeddings, either auto-generated from aVARCHAR
field or provided directly by the inserted data. -
(For built-in BM25) A
VARCHAR
field for raw text documents withenable_analyzer
set toTrue
.
- Python
- Java
- NodeJS
- Go
- cURL
from pymilvus import MilvusClient, DataType
client = MilvusClient(uri="YOUR_CLUSTER_ENDPOINT")
schema = client.create_schema(
auto_id=True,
enable_dynamic_fields=True,
)
schema.add_field(field_name="pk", datatype=DataType.VARCHAR, is_primary=True, max_length=100)
schema.add_field(field_name="sparse_vector", datatype=DataType.SPARSE_FLOAT_VECTOR)
schema.add_field(field_name="text", datatype=DataType.VARCHAR, max_length=1000, enable_analyzer=True)
import io.milvus.v2.client.ConnectConfig;
import io.milvus.v2.client.MilvusClientV2;
import io.milvus.v2.common.DataType;
import io.milvus.v2.service.collection.request.AddFieldReq;
import io.milvus.v2.service.collection.request.CreateCollectionReq;
MilvusClientV2 client = new MilvusClientV2(ConnectConfig.builder()
.uri("YOUR_CLUSTER_ENDPOINT")
.build());
CreateCollectionReq.CollectionSchema schema = client.createSchema();
schema.setEnableDynamicField(true);
schema.addField(AddFieldReq.builder()
.fieldName("pk")
.dataType(DataType.VarChar)
.isPrimaryKey(true)
.autoID(true)
.maxLength(100)
.build());
schema.addField(AddFieldReq.builder()
.fieldName("sparse_vector")
.dataType(DataType.SparseFloatVector)
.build());
schema.addField(AddFieldReq.builder()
.fieldName("text")
.dataType(DataType.VarChar)
.maxLength(1000)
.enableAnalyzer(true)
.build());
import { DataType } from "@zilliz/milvus2-sdk-node";
const schema = [
{
name: "metadata",
data_type: DataType.JSON,
},
{
name: "pk",
data_type: DataType.Int64,
is_primary_key: true,
},
{
name: "sparse_vector",
data_type: DataType.SparseFloatVector,
},
{
name: "text",
data_type: "VarChar",
enable_analyzer: true,
enable_match: true,
max_length: 1000,
},
];
import (
"context"
"fmt"
"github.com/milvus-io/milvus/client/v2/column"
"github.com/milvus-io/milvus/client/v2/entity"
"github.com/milvus-io/milvus/client/v2/index"
"github.com/milvus-io/milvus/client/v2/milvusclient"
)
ctx, cancel := context.WithCancel(context.Background())
defer cancel()
milvusAddr := "YOUR_CLUSTER_ENDPOINT"
client, err := milvusclient.New(ctx, &milvusclient.ClientConfig{
Address: milvusAddr,
})
if err != nil {
fmt.Println(err.Error())
// handle error
}
defer client.Close(ctx)
schema := entity.NewSchema()
schema.WithField(entity.NewField().
WithName("pk").
WithDataType(entity.FieldTypeVarChar).
WithIsAutoID(true).
WithIsPrimaryKey(true).
WithMaxLength(100),
).WithField(entity.NewField().
WithName("sparse_vector").
WithDataType(entity.FieldTypeSparseVector),
).WithField(entity.NewField().
WithName("text").
WithDataType(entity.FieldTypeVarChar).
WithEnableAnalyzer(true).
WithMaxLength(1000),
)
export primaryField='{
"fieldName": "pk",
"dataType": "VarChar",
"isPrimary": true,
"elementTypeParams": {
"max_length": 100
}
}'
export vectorField='{
"fieldName": "sparse_vector",
"dataType": "SparseFloatVector"
}'
export textField='{
"fieldName": "text",
"dataType": "VarChar",
"elementTypeParams": {
"max_length": 1000,
"enable_analyzer": true
}
}'
export schema="{
\"autoID\": true,
\"fields\": [
$primaryField,
$vectorField,
$textField
]
}"
In this example, three fields are added:
-
pk
: This field stores primary keys using theVARCHAR
data type, which is auto-generated with a maximum length of 100 bytes. -
sparse_vector
: This field stores sparse vectors using theSPARSE_FLOAT_VECTOR
data type. -
text
: This field stores text strings using theVARCHAR
data type, with a maximum length of 1000 bytes.
Add functions
This step is required if you need Zilliz Cloud to generate sparse vector embeddings based on the value in a specified text field during data insertion. You can skip this step if you decide to bring your own vectors.
To utilize the full-text search feature built in Zilliz Cloud, powered by BM25 (eliminating the need for manual generation of sparse embeddings), you need to add the Function
to the schema:
- Python
- Java
- NodeJS
- Go
- cURL
from pymilvus import Function, FunctionType
bm25_function = Function(
name="text_bm25_emb",
input_field_names=["text"],
output_field_names=["sparse"],
function_type=FunctionType.BM25,
)
schema.add_function(bm25_function)
import io.milvus.common.clientenum.FunctionType;
import io.milvus.v2.service.collection.request.CreateCollectionReq.Function;
import java.util.*;
schema.addFunction(Function.builder()
.functionType(FunctionType.BM25)
.name("text_bm25_emb")
.inputFieldNames(Collections.singletonList("text"))
.outputFieldNames(Collections.singletonList("sparse"))
.build());
import FunctionType from "@zilliz/milvus2-sdk-node";
const functions = [
{
name: 'text_bm25_emb',
description: 'bm25 function',
type: FunctionType.BM25,
input_field_names: ['text'],
output_field_names: ['sparse'],
params: {},
},
];
import "github.com/milvus-io/milvus/client/v2/entity"
function := entity.NewFunction().
WithName("text_bm25_emb").
WithInputFields("text").
WithOutputFields("sparse").
WithType(entity.FunctionTypeBM25)
schema.WithFunction(function)
export bm25Function='{
"name": "text_bm25_emb",
"type": "BM25",
"inputFieldNames": ["text"],
"outputFieldNames": ["sparse"],
"params": {}
}'
export schema="{
\"autoID\": true,
\"fields\": [
$primaryField,
$vectorField,
$textField
],
\"functions\": [$bm25Function]
}"
For more details, see Full Text Search.
Set Index Parameters
The process of creating an index for sparse vectors is similar to that for dense vectors, but with differences in the specified index type (index_type
), distance metric (metric_type
), and index parameters (params
).
- Python
- Java
- NodeJS
- Go
- cURL
index_params = client.prepare_index_params()
index_params.add_index(
field_name="sparse_vector",
index_name="sparse_auto_index",
index_type="AUTOINDEX",
metric_type="BM25" # or "IP" for custom sparse vectors
)
import io.milvus.v2.common.IndexParam;
import java.util.*;
List<IndexParam> indexes = new ArrayList<>();
indexes.add(IndexParam.builder()
.fieldName("sparse_vector")
.indexName("sparse_auto_index")
.indexType(IndexParam.IndexType.AUTOINDEX)
.metricType(IndexParam.MetricType.BM25) // Or IndexParam.MetricType.IP for custom sparse vectors
.build());
const indexParams = await client.createIndex({
field_name: 'sparse_vector',
metric_type: MetricType.BM25, // or MetricType.IP for custom sparse vectors
index_name: 'sparse_auto_index',
index_type: IndexType.AUTOINDEX,
});
idx := index.NewSparseInvertedIndex(entity.BM25, 0.2) // or entity.IP for custom sparse vectors
indexOption := milvusclient.NewCreateIndexOption("my_collection", "sparse_vector", idx)
export indexParams='[
{
"fieldName": "sparse_vector",
"metricType": "BM25", # or "IP" for custom sparse vectors
"indexName": "sparse_auto_index",
"indexType": "AUTOINDEX"
}
]'
This example uses the SPARSE_INVERTED_INDEX
index type with BM25
as the metric. For more details, see the following resources:
-
Metric Types: Supported metric types for different field types
-
Full Text Search: Detailed tutorial on full-text search
Create Collection
Once the sparse vector and index settings are complete, you can create a collection that contains sparse vectors. The example below uses the create_collection
method to create a collection named my_collection
.
- Python
- Java
- NodeJS
- Go
- cURL
client.create_collection(
collection_name="my_collection",
schema=schema,
index_params=index_params
)
CreateCollectionReq requestCreate = CreateCollectionReq.builder()
.collectionName("my_collection")
.collectionSchema(schema)
.indexParams(indexes)
.build();
client.createCollection(requestCreate);
import { MilvusClient } from "@zilliz/milvus2-sdk-node";
const client = new MilvusClient({
address: 'YOUR_CLUSTER_ENDPOINT'
});
await client.createCollection({
collection_name: 'my_collection',
schema: schema,
index_params: indexParams
});
err = client.CreateCollection(ctx,
milvusclient.NewCreateCollectionOption("my_collection", schema).
WithIndexOptions(indexOption))
if err != nil {
fmt.Println(err.Error())
// handle error
}
curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/collections/create" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d "{
\"collectionName\": \"my_collection\",
\"schema\": $schema,
\"indexParams\": $indexParams
}"
Insert data
You must provide data for all fields defined during collection creation, except for fields that are auto-generated (such as the primary key with auto_id
enabled). If you are using the built-in BM25 function to auto-generate sparse vectors, you should also omit the sparse vector field when inserting data.
- Python
- Java
- NodeJS
- Go
- cURL
data = [
{
"text": "information retrieval is a field of study.",
# "sparse_vector": {1: 0.5, 100: 0.3, 500: 0.8} # Do NOT provide sparse vectors if using built-in BM25
},
{
"text": "information retrieval focuses on finding relevant information in large datasets.",
# "sparse_vector": {10: 0.1, 200: 0.7, 1000: 0.9} # Do NOT provide sparse vectors if using built-in BM25
},
]
client.insert(
collection_name="my_collection",
data=data
)
import com.google.gson.Gson;
import com.google.gson.JsonObject;
import io.milvus.v2.service.vector.request.InsertReq;
import io.milvus.v2.service.vector.response.InsertResp;
import java.util.ArrayList;
import java.util.List;
import java.util.SortedMap;
import java.util.TreeMap;
Gson gson = new Gson();
List<JsonObject> rows = new ArrayList<>();
{
JsonObject row = new JsonObject();
row.addProperty("text", "information retrieval is a field of study.");
SortedMap<Long, Float> sparse = new TreeMap<>();
/* Do NOT provide sparse vectors if using the built-in BM25
sparse.put(1L, 0.5f);
sparse.put(100L, 0.3f);
sparse.put(500L, 0.8f);
row.add("sparse_vector", gson.toJsonTree(sparse));
*/
rows.add(row);
}
{
JsonObject row = new JsonObject();
row.addProperty("text", "information retrieval focuses on finding relevant information in large datasets.");
SortedMap<Long, Float> sparse = new TreeMap<>();
/* Do NOT provide sparse vectors if using the built-in BM25
sparse.put(10L, 0.1f);
sparse.put(200L, 0.7f);
sparse.put(1000L, 0.9f);
row.add("sparse_vector", gson.toJsonTree(sparse));
*/
rows.add(row);
}
InsertResp insertResp = client.insert(InsertReq.builder()
.collectionName("my_collection")
.data(rows)
.build());
const data = [
{
text: 'information retrieval is a field of study.',
// sparse_vector: {1: 0.5, 100: 0.3, 500: 0.8} // Do NOT provide sparse vectors if using built-in BM25
},
{
text: 'information retrieval focuses on finding relevant information in large datasets.',
// sparse_vector: {10: 0.1, 200: 0.7, 1000: 0.9} // Do NOT provide sparse vectors if using built-in BM25
},
];
client.insert({
collection_name: "my_collection",
data: data
});
texts := []string{
"information retrieval is a field of study.",
"information retrieval focuses on finding relevant information in large datasets.",
}
textColumn := entity.NewColumnVarChar("text", texts)
// Prepare sparse vectors (Do NOT provide sparse vectors if using the built-in BM25)
// sparseVectors := make([]entity.SparseEmbedding, 0, 2)
// sparseVector1, _ := entity.NewSliceSparseEmbedding([]uint32{1, 100, 500}, []float32{0.5, 0.3, 0.8})
// sparseVectors = append(sparseVectors, sparseVector1)
// sparseVector2, _ := entity.NewSliceSparseEmbedding([]uint32{10, 200, 1000}, []float32{0.1, 0.7, 0.9})
// sparseVectors = append(sparseVectors, sparseVector2)
// sparseVectorColumn := entity.NewColumnSparseVectors("sparse_vector", sparseVectors)
_, err = client.Insert(ctx, milvusclient.NewColumnBasedInsertOption("my_collection").
WithColumns(
textColumn,
// sparseVectorColumn
))
if err != nil {
fmt.Println(err.Error())
// handle err
}
curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/entities/insert" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d '{
"data": [
{"text": "information retrieval is a field of study.",
{"text": "information retrieval focuses on finding relevant information in large datasets."
],
"collectionName": "my_collection"
}'
Perform Similarity Search
To perform a similarity search using sparse vectors, prepare both the query data and the search parameters. If you are using the built-in BM25 function, simply provide the query text — there is no need to supply a sparse vector.
- Python
- Java
- Go
- NodeJS
- cURL
# Prepare search parameters
search_params = {
"params": {"drop_ratio_search": 0.2}, # A tunable drop ratio parameter with a valid range between 0 and 1
}
# Query with text if search with the built-in BM25
query_data = ["What is information retrieval?"]
# Otherwise, query with the sparse vector
# query_data = [{1: 0.2, 50: 0.4, 1000: 0.7}]
import io.milvus.v2.service.vector.request.data.EmbeddedText;
import io.milvus.v2.service.vector.request.data.SparseFloatVec;
// Prepare search parameters
Map<String,Object> searchParams = new HashMap<>();
searchParams.put("drop_ratio_search", 0.2);
// Query with text if search with the built-in BM25
EmbeddedText queryData = new EmbeddedText("What is information retrieval?");
// Otherwise, query with the sparse vector
// SortedMap<Long, Float> sparse = new TreeMap<>();
// sparse.put(1L, 0.2f);
// sparse.put(50L, 0.4f);
// sparse.put(1000L, 0.7f);
// SparseFloatVec queryData = new SparseFloatVec(sparse);
// Prepare search parameters
annSearchParams := index.NewCustomAnnParam()
annSearchParams.WithExtraParam("drop_ratio_search", 0.2)
// Query with text if search with the built-in BM25
queryData := entity.Text({"What is information retrieval?"})
// Otherwise, query with the sparse vector
// queryData, _ := entity.NewSliceSparseEmbedding([]uint32{1, 50, 1000}, []float32{0.2, 0.4, 0.7})
// Prepare search parameters
const searchParams = {drop_ratio_search: 0.2}
// Query with text if search with the built-in BM25
const queryData = ["What is information retrieval?"]
// Otherwise, query with the sparse vector
// const queryData = [{1: 0.2, 50: 0.4, 1000: 0.7}]
# Prepare search parameters
export queryData='["What is information retrieval?"]'
# Query with text if search with the built-in BM25
export searchParams='{"params":{"drop_ratio_search": 0.2}}'
# Otherwise, query with the sparse vector
# export queryData='[{1: 0.2, 50: 0.4, 1000: 0.7}]'
Then, execute the similarity search using the search
method:
- Python
- Java
- NodeJS
- Go
- cURL
res = client.search(
collection_name="my_collection",
data=query_data,
limit=3,
output_fields=["pk"],
search_params=search_params,
)
print(res)
# Output
# data: ["[{'id': '453718927992172266', 'distance': 0.6299999952316284, 'entity': {'pk': '453718927992172266'}}, {'id': '453718927992172265', 'distance': 0.10000000149011612, 'entity': {'pk': '453718927992172265'}}]"]
import io.milvus.v2.service.vector.request.SearchReq;
import io.milvus.v2.service.vector.response.SearchResp;
SparseFloatVec queryVector = new SparseFloatVec(sparse);
SearchResp searchR = client.search(SearchReq.builder()
.collectionName("my_collection")
.data(Collections.singletonList(queryData))
.annsField("sparse_vector")
.searchParams(searchParams)
.topK(3)
.outputFields(Collections.singletonList("pk"))
.build());
System.out.println(searchR.getSearchResults());
// Output
//
// [[SearchResp.SearchResult(entity={pk=457270974427187729}, score=0.63, id=457270974427187729), SearchResp.SearchResult(entity={pk=457270974427187728}, score=0.1, id=457270974427187728)]]
await client.search({
collection_name: 'my_collection',
data: queryData,
limit: 3,
output_fields: ['pk'],
params: searchParams
});
resultSets, err := client.Search(ctx, milvusclient.NewSearchOption(
"my_collection",
3, // limit
[]entity.Vector{queryData},
).WithANNSField("sparse_vector").
WithOutputFields("pk").
WithAnnParam(annSearchParams))
if err != nil {
fmt.Println(err.Error())
// handle err
}
for _, resultSet := range resultSets {
fmt.Println("IDs: ", resultSet.IDs.FieldData().GetScalars())
fmt.Println("Scores: ", resultSet.Scores)
fmt.Println("Pks: ", resultSet.GetColumn("pk").FieldData().GetScalars())
}
// Results:
// IDs: string_data:{data:"457270974427187705" data:"457270974427187704"}
// Scores: [0.63 0.1]
// Pks: string_data:{data:"457270974427187705" data:"457270974427187704"}
curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/entities/search" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d '{
"collectionName": "my_collection",
"data": $queryData,
"annsField": "sparse_vector",
"limit": 3,
"searchParams": $searchParams,
"outputFields": ["pk"]
}'
## {"code":0,"cost":0,"data":[{"distance":0.63,"id":"453577185629572535","pk":"453577185629572535"},{"distance":0.1,"id":"453577185629572534","pk":"453577185629572534"}]}
For more information on similarity search parameters, refer to Basic Vector Search.
